M05-A**-ST0-F01-BQ2
Rated current: 1A
Rated voltage: 60V
Use wire diameter:
spacing:
Install:
Connector Series: M5
| Gender | Female | ||
| Coding | A | ||
| Locking Type | Fix Screw | ||
| Mounting Type | Front Fastened | ||
| Part No | M05-A**-ST0-F01-BQ2 | ||
Technical Data
| Standard | IEC61076-2-105 | |
| Ambient Temperatur | -25℃~+85℃ | |
| Insulation Resistance | ≥100MΩ | |
| Contact Resistance | ≤5mΩ | |
| IP Class | IP67 | |
| Mating Endurance | >100 Mating Cycles | |
Material Data
| Connector Carriers | PA |
| Connector Contacts | Copper Alloy With Gold Plated |
| Connector Nut/Screw | Copper Alloy With Nickel Plated |
| Shielding | Unshielded |
| Seal/O-Ring | FKM |
Electrical Data & Mechanical Date
| Contacts Pin [Pins] | 3 | 4 |
| Rated Current [A] | 1 | 1 |
| Voltage AC/DC [V] | 60/60 | 60/60 |
| Contacts Termination | PCB Version | |

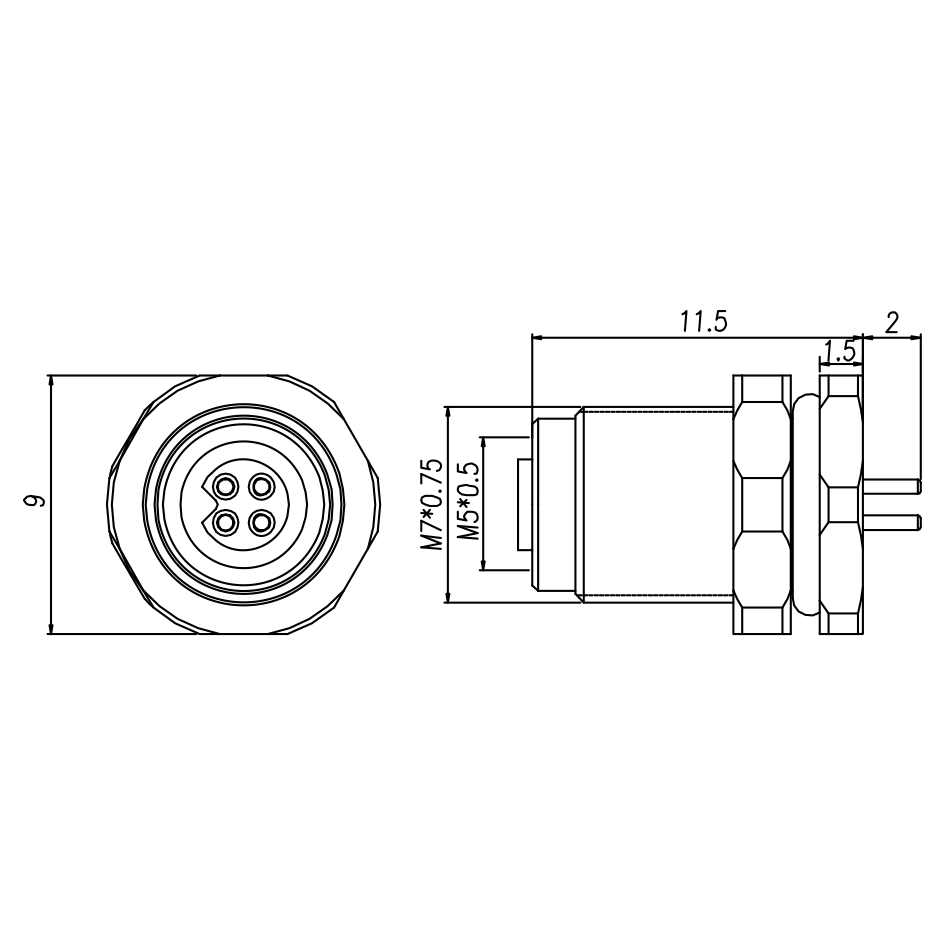

Dimensions
Dimensions

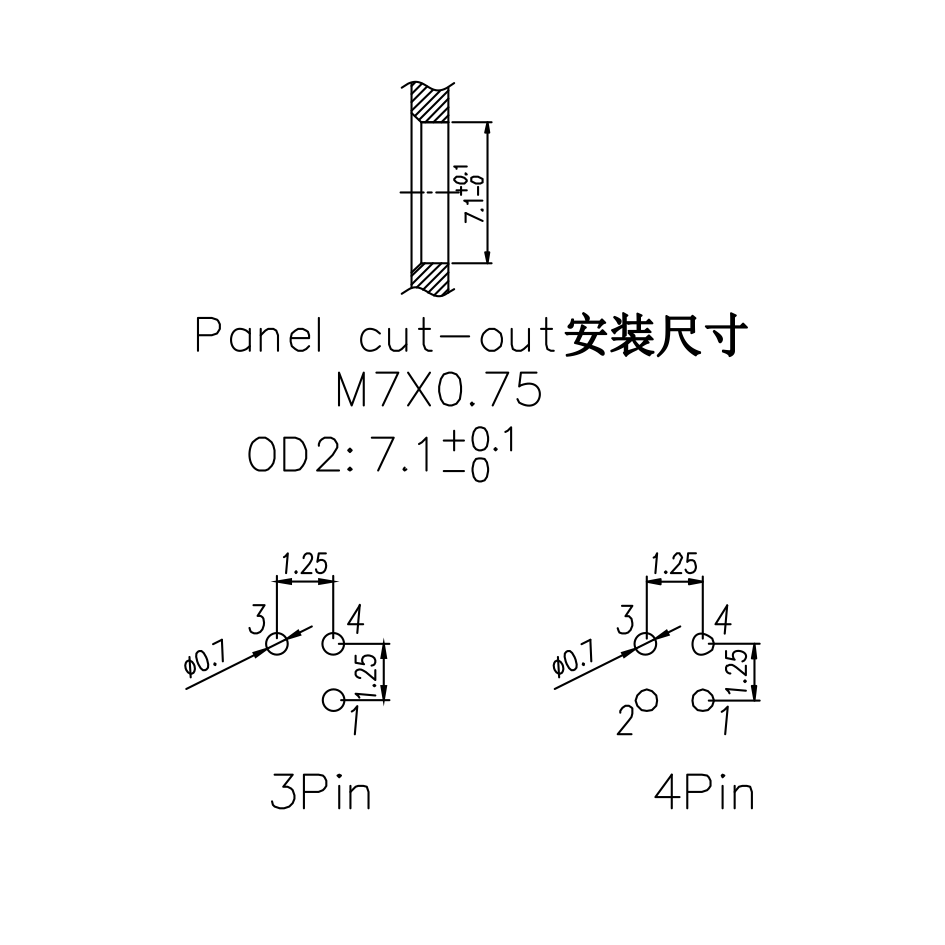

PCB hole diagram
Specifications
3D Model
