M12 Male Molded Cables, S&T-Coding, Straight

Connector Series：M12
Gender：Male
Coding：S,T
Locking Type：Fix Screw
Mounting Type：Straight
Part No：M12-X**-ST0-M02-BC*-XXX
              X:S,T Coding
              **:03,04(Pin)
              ST0:0=UnShielded，2=Full Shield
              BC*:BCC=Cable Jacket PVC(For Molded Cable)
              BC*:BCR=Cable Jacket PUR(For Molded Cable)
              XXX:050=0.5M,100=1M,10M=10M...(Length)

Technical Data
Standard
IEC61076-2-101
Ambient Temperatur
-25℃~+80℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤10mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
PA
Connector Contacts
Copper Alloy With Gold Plated 铜镀金
Connector Nut/Screw
Copper Alloy With Nickel Plated 铜镀镍
Shielding
Shielded/UnShielded 屏蔽/非屏蔽
Connector Overmold
TPU
Electrical Data & Mechanical Date
Available Coding
S-CodingT-Coding
Rated Current
16A(03Pin)/12A(04Pin)12A
Rated Voltage
630V60V
Wire Range AWG/mm²
16 AWG / 1.5 mm²
Cable Jacket
PUR/PVC
Dimensions

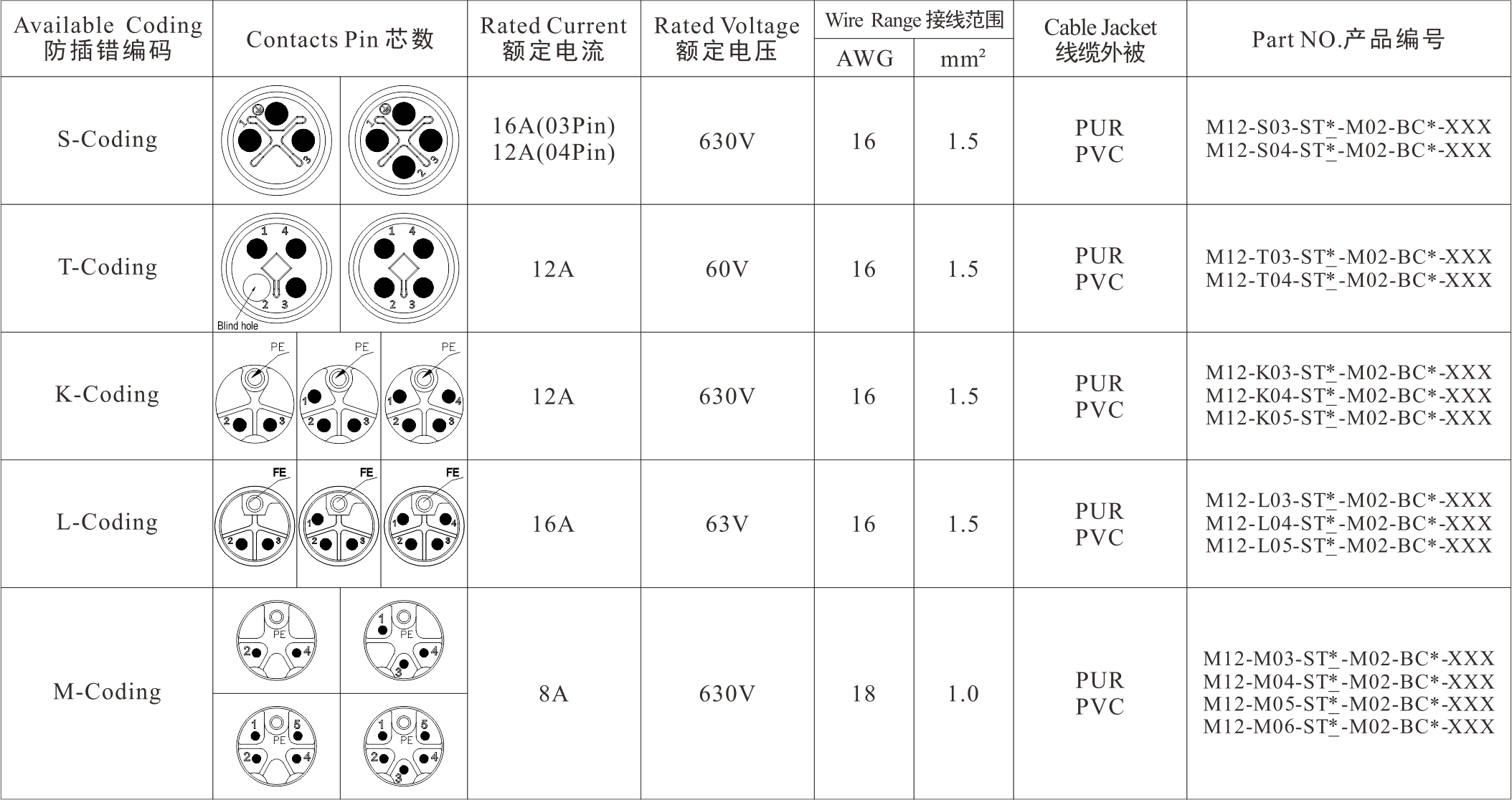

Specification Selection Table
PDF Page



3D Model
