M12 Male Panel Mount, S&T-Coding, Crimping Type, Front Fastened, With Wires

Connector Series：M12
Gender：Male
Coding：S,T
Locking Type：Fix Screw
Mounting Type：Front Fastened
Part No：M12-X**-ST0-M03-BQ*-XXX
             X:A,B,C,D Coding
             **:03,04(Pin)
             *:1=M16X1.5    2=PG9,...
             XXX:050=0.5M,100=1M,10M=10M...(Length)

Technical Data
Standard
IEC61076-2-111
Ambient Temperatur
-25℃~+80℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤10mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
PA
Connector Contacts
Copper Alloy With Gold Plated 铜镀金
Connector Nut/Screw
Copper Alloy With Nickel Plated 铜镀镍
Seal/O-Ring
FKM 氟橡胶
Shielding
Unshielded 非屏蔽
Contacts Termination
Crimping Type 压接式
Electrical Data & Mechanical Date
Available Coding
S-CodingT-Coding
Rated Current
16A(03Pin) 12A(04Pin)12A
Rated Voltage
630V60V
Wire Range AWG/mm²
16 AWG / 1.5 mm²
Dimensions

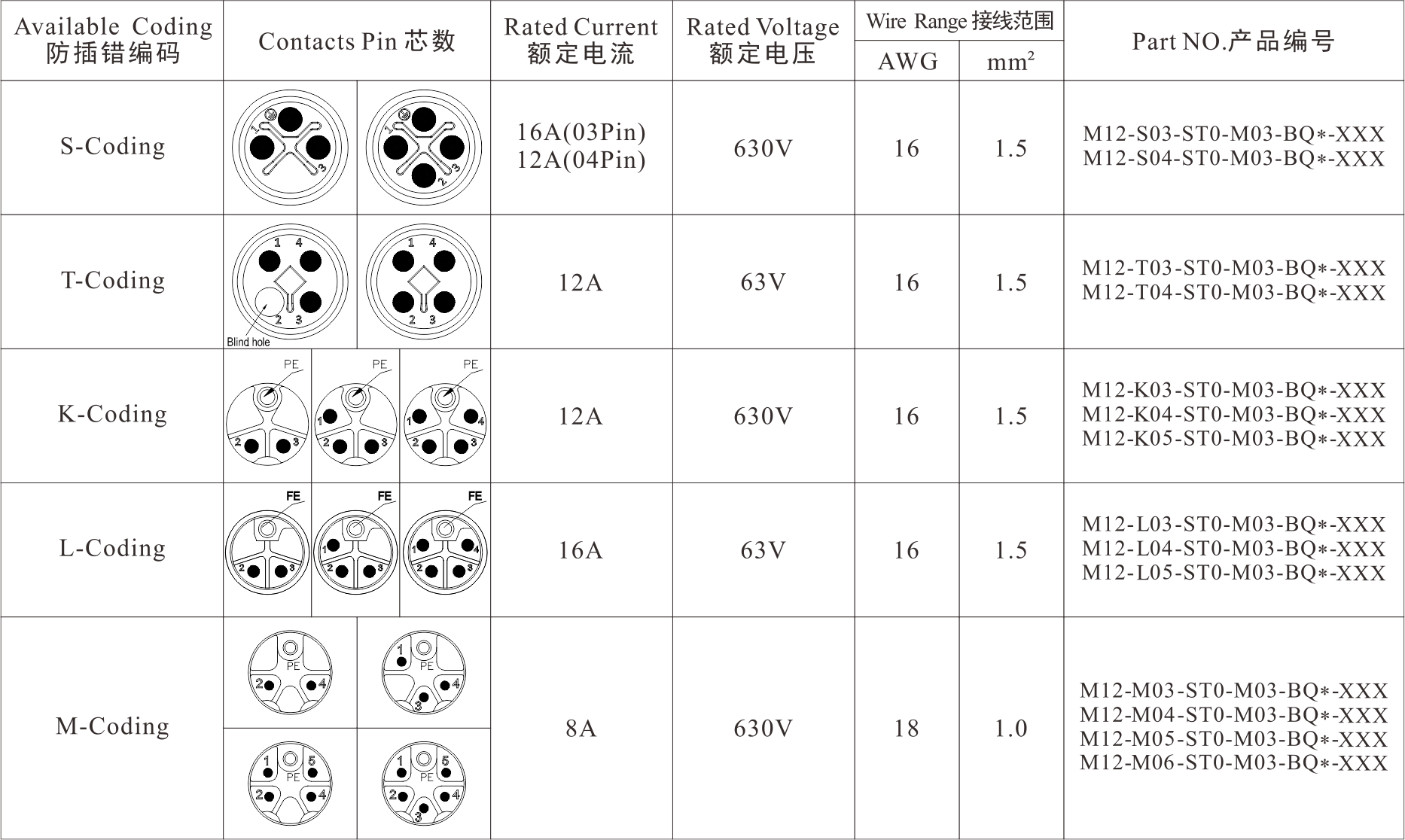

Specification Selection Table
PDF Page



3D Model
