材质及电镀 Material
| 螺丝 Screws | M3.0 Steel Ni plated | ||
| 焊脚 Pin Header | Copper alloy，Sn plated | ||
| 塑件 Housing | PA66，UL94V-0 | ||
电气性能 Electrical
| 参考标准 Standard | UL | IEC |
| 额定电压 Rated voltage | 300V | 320V |
| 额定电流 Rated current | 20A | 24A |
| 使用线径 Wire range | 22-12AWG | 2.5mm² |
| 接触电阻 Contact Resistance | 20mΩ | |
| 绝缘电阻 Insulation resistance | 500MΩ/DC500V | |
| 耐电压 Withstanding voltage | AC2000V/1Min | |
一般参数 Other Date
| 间距/极数 Pitch/Poles [mm]/[P] | 8.25/2-20 |
| 工作温度 Operating temperature [℃] | -40～+105 |
| 扭矩 Torque | 5.10Kgf.cm/0.5N.m/4.50Lb.in |

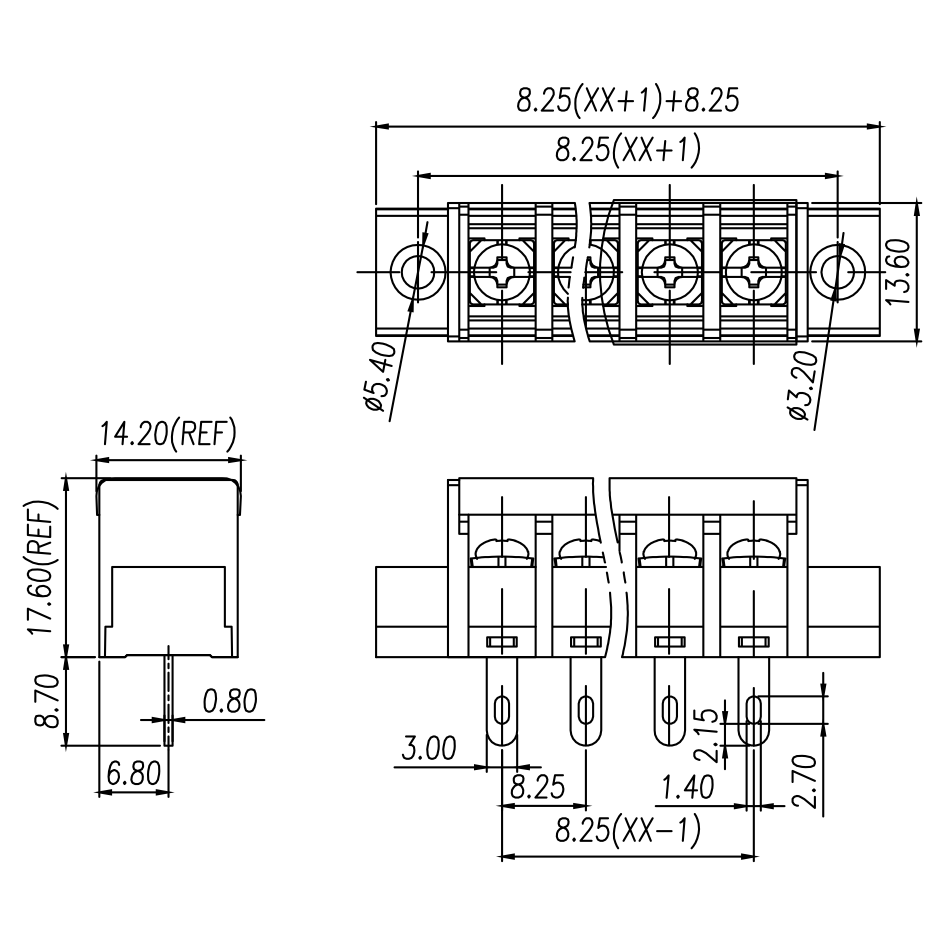

尺寸图
尺寸图

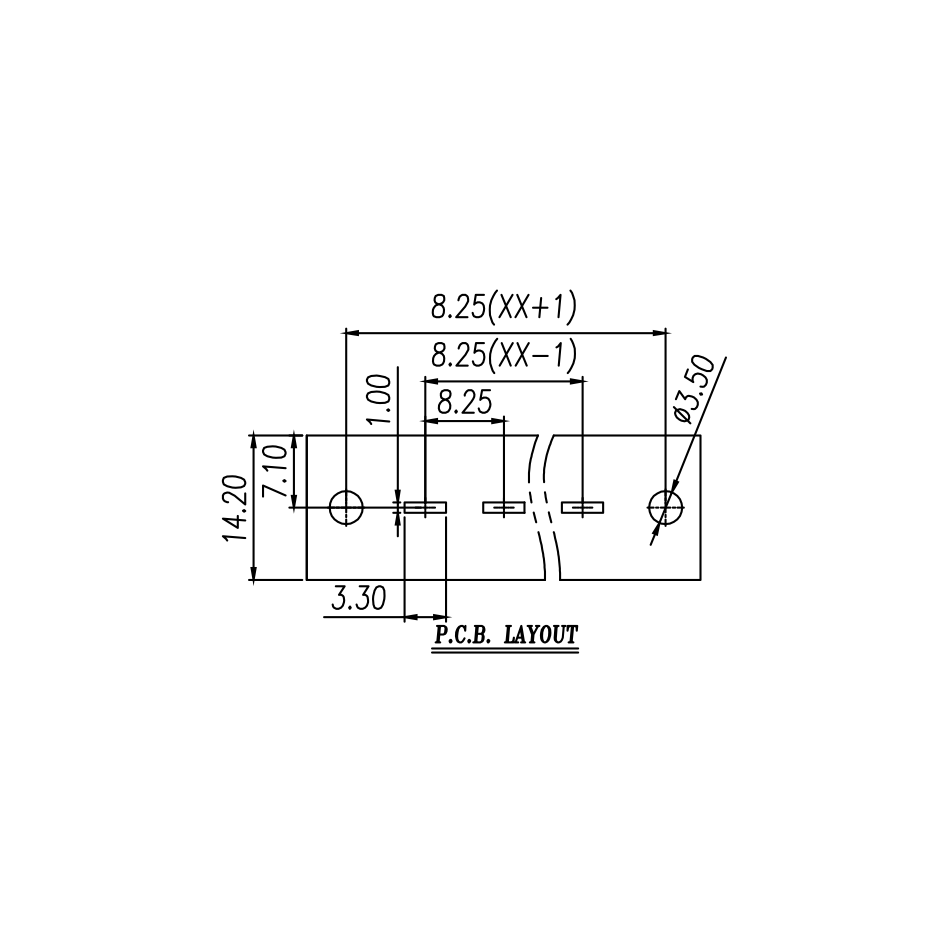

PCB开孔图
规格书
3D模型
