UL/CUL
| Use Group | B | C | D |
| Rate Voltage [V] | 300 | - | 300 |
| Rated Current [A] | 10 | - | 10 |
| Wire Range [AWG] | 28-12 | ||
| Dielectric Voltage-Withstand | 1.6KV | ||
IEC
| Overvoltage Category | III | III | II |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage [V] | 250 | 320 | 630 |
| Rated Current [A] | 12 | 12 | 12 |
| Impulse withstand voltage [KV] | 4 | 4 | 4 |
| Conductor cross section [mm²] | 0.2-2.5 | ||
Material
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn plated |
Other Date
| Pitch/Poles [mm]/[P] | 5.0/2-24 |
| Stripping Length [mm] | 9-10 |
| Screw/Torque(Max)[N.m] | - |
| Operating temperature [℃] | -40～+105 |
| Soldering temperature | - |
| Pin dimensions [mm] | - |
| PCB Hole Diameter [mm] | - |

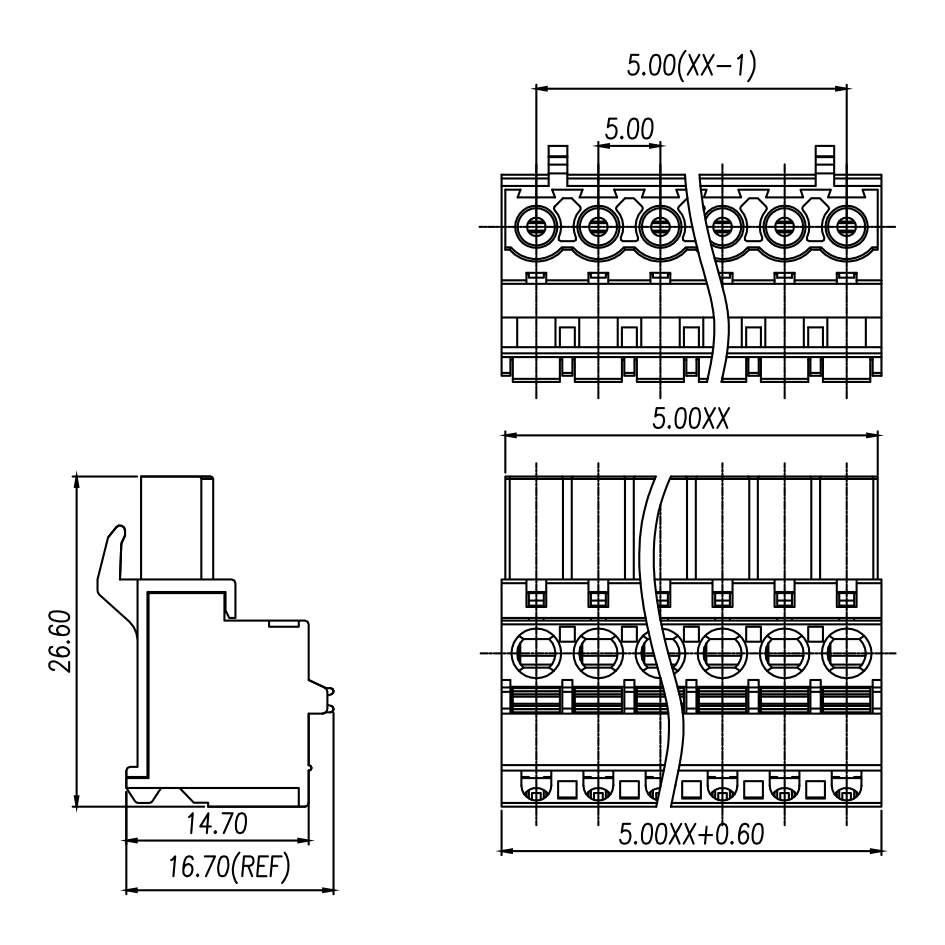

尺寸图
尺寸图
适配产品
WJ2EDGV-5.0
WJ2EDGR-5.0
WJ2EDGVC-5.0
WJ2EDGRC-5.0
WJ2EDGRR-5.0
WJ2EDGRRC-5.0
WJ2EDGV-THT-5.0
WJ2EDGVC-THT-5.0
WJ2EDGR-THT-5.0
WJ2EDGRC-THT-5.0
WJ2EDGL-5.0
WJ2EDGLC-5.0
WJ2EDGKDR-5.0
