技术数据-UL（1059）
| 等级 Use Group | B | C | D |
| 额定电压 Rate Voltage [V] | 600 | 600 | 600 |
| 额定电流 Rated Current [A] | 50 | 50 | 5 |
| 接线范围 Wire Range [AWG] | 24-8 | ||
技术参数-IEC（60947-7-1）
| 额定电压 Rated Voltage [V] | 1000 |
| 额定电流 Rated Current [A] | 41 |
| 单芯 Soild [mm²] | 0.2-10.0 |
| 柔性导线 Flexible [mm²] | 0.2-6.0 |
| 柔性导线带冷压头 Flexible with ferrule [mm²] | 0.25-6.0 |
| 过电压类别 Overvoltage Category | III |
| 污染等级 Contamination Class | 3 |
| 额定冲击电压 Impulse withstand voltage [KV] | 8 |
材料 Material
| 绝缘材料 Insulation Material | PA66 |
| 阻燃等级 Flame relardant rating | UL94V-0 |
| 导体材料 Conductor Material | Copper alloy |
| 导体表面镀层 Plating of conductor surface | Sn plated |
一般参数 Other Date
| 长/高/厚 Length/Height/Thickness [mm] | 43.3/42.0/8.2 |
| 剥线长度 Stripping Length [mm] | 10-11 |
| 螺丝/扭矩 Screw/Torque [N.m] | M4/1.2-1.5 |

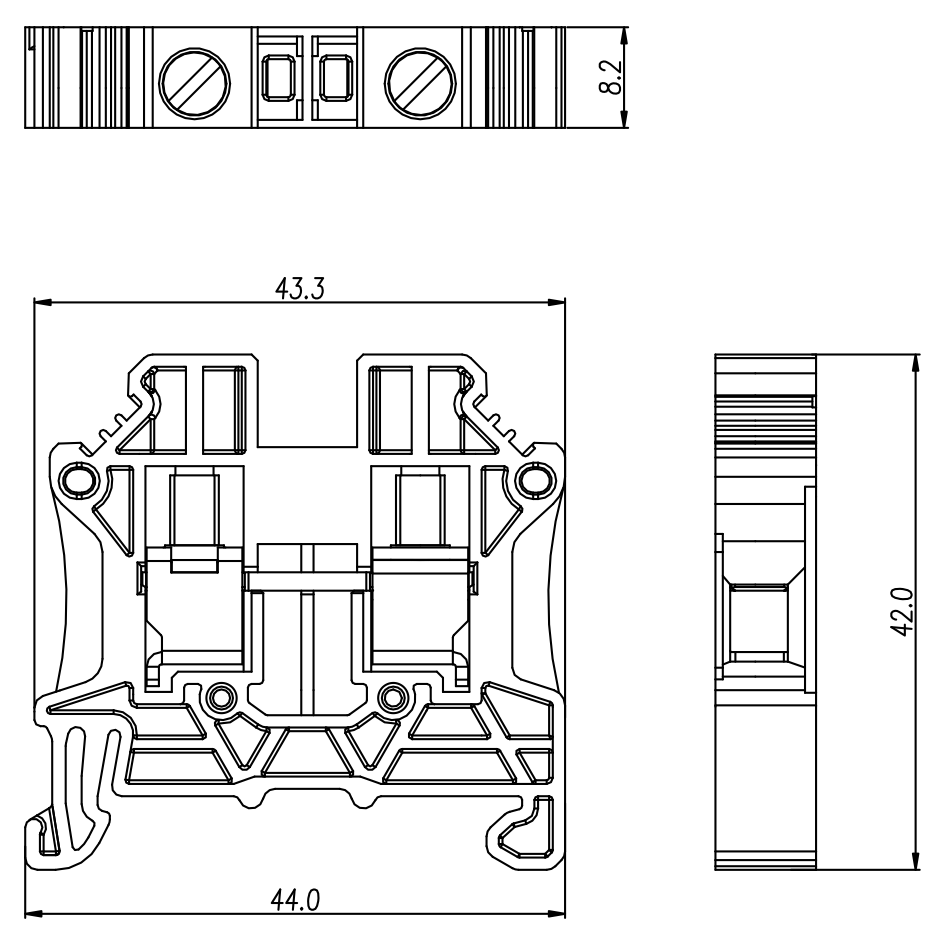

尺寸图
尺寸图
