材质及电镀 Material
| 螺丝 Screws | M6.0 Steel Zn plated | ||
| 焊脚 Pin Header | Copper alloy，Sn plated | ||
| 塑件 Housing | PBT，UL94V-0 | ||
电气性能 Electrical
| 参考标准 Standard | UL |
| 额定电压 Rated voltage | 600V |
| 额定电流 Rated current | 115A |
| 使用线径 Wire range | 8-2AWG |
| 接触电阻 Contact Resistance | 20mΩ |
| 绝缘电阻 Insulation resistance | 1000MΩ/DC500V |
| 耐电压 Withstanding voltage | AC2500V/1Min |
一般参数 Other Date
| 间距/极数 Pitch/Poles [mm]/[P] | 21.0/1-15 |
| 工作温度 Operating temperature [℃] | -40～+130 |
| 扭矩 Torque | 30.6Kgf.cm/3.0N.m/26.6Lb.in |

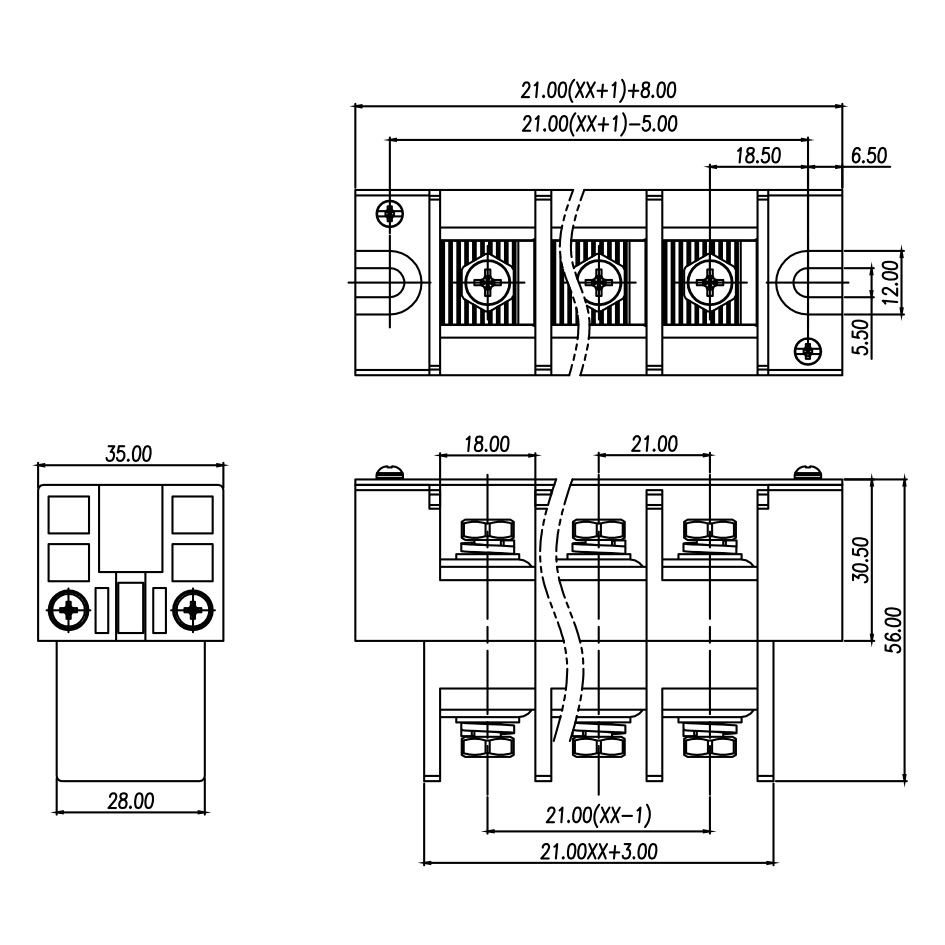

尺寸图
尺寸图

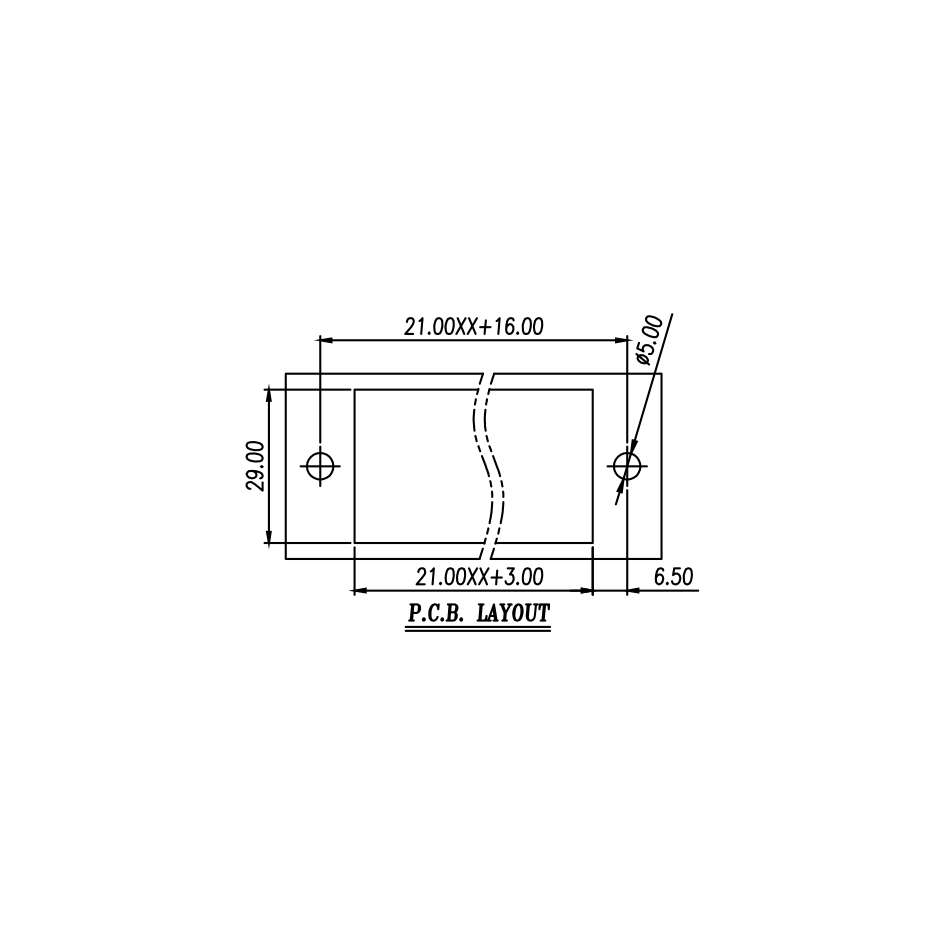

PCB开孔图
规格书
3D模型
