材质及电镀 Material
| 螺丝 Screws | M3.5 Steel Ni plated | ||
| 焊脚 Pin Header | Copper alloy，Ni plated | ||
| 塑件 Housing | PA66，UL94V-0 | ||
电气性能 Electrical
| 参考标准 Standard | UL | IEC |
| 额定电压 Rated voltage | 300V | 250V |
| 额定电流 Rated current | 20A | 32A |
| 使用线径 Wire range | 22-12AWG | 4.0mm² |
| 接触电阻 Contact Resistance | 20mΩ | |
| 绝缘电阻 Insulation resistance | 500MΩ/DC500V | |
| 耐电压 Withstanding voltage | AC2000V/1Min | |
一般参数 Other Date
| 间距/极数 Pitch/Poles [mm]/[P] | 9.5/2-26 |
| 工作温度 Operating temperature [℃] | -40～+105 |
| 扭矩 Torque | 8.16Kgf.cm/0.8N.m/7.0Lb.in |

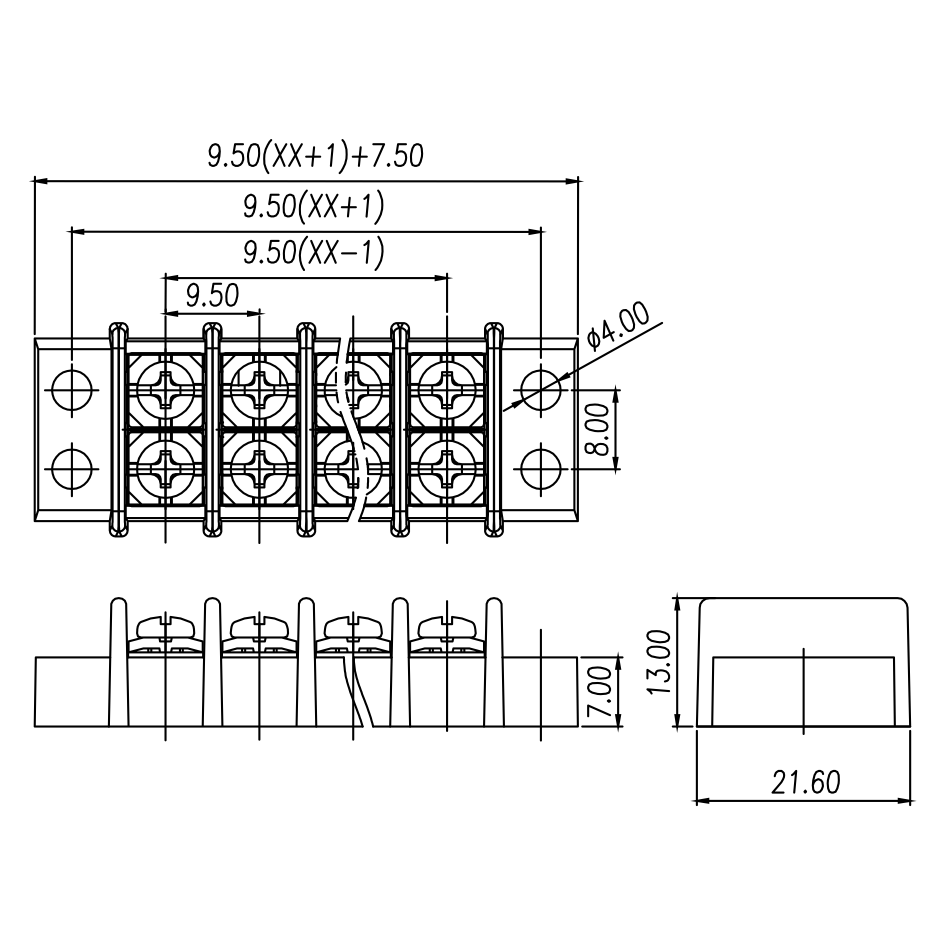

尺寸图
尺寸图
