Rated current: 20A
Rated voltage: 300V
Use wire diameter: 22-12AWG
spacing: 10.0mm
Install:
Material
| Screws | M4.0 Steel Ni plated | ||
| Pin Header | Copper alloy，Sn plated | ||
| Housing | PA66，UL94V-0 | ||
Electrical
| Standard | UL | IEC |
| Rated voltage | 300V | 400V |
| Rated current | 20A | 24A |
| Wire range | 22-12AWG | 2.5mm² |
| Contact Resistance | 20mΩ | |
| Insulation resistance | 500MΩ/DC500V | |
| Withstanding voltage | AC2000V/1Min | |
Other Date
| Pitch/Poles [mm]/[P] | 10.0/2-22 |
| Operating temperature [℃] | -40～+105 |
| Torque | 12.24Kgf.cm/1.2N.m/10.6Lb.in |

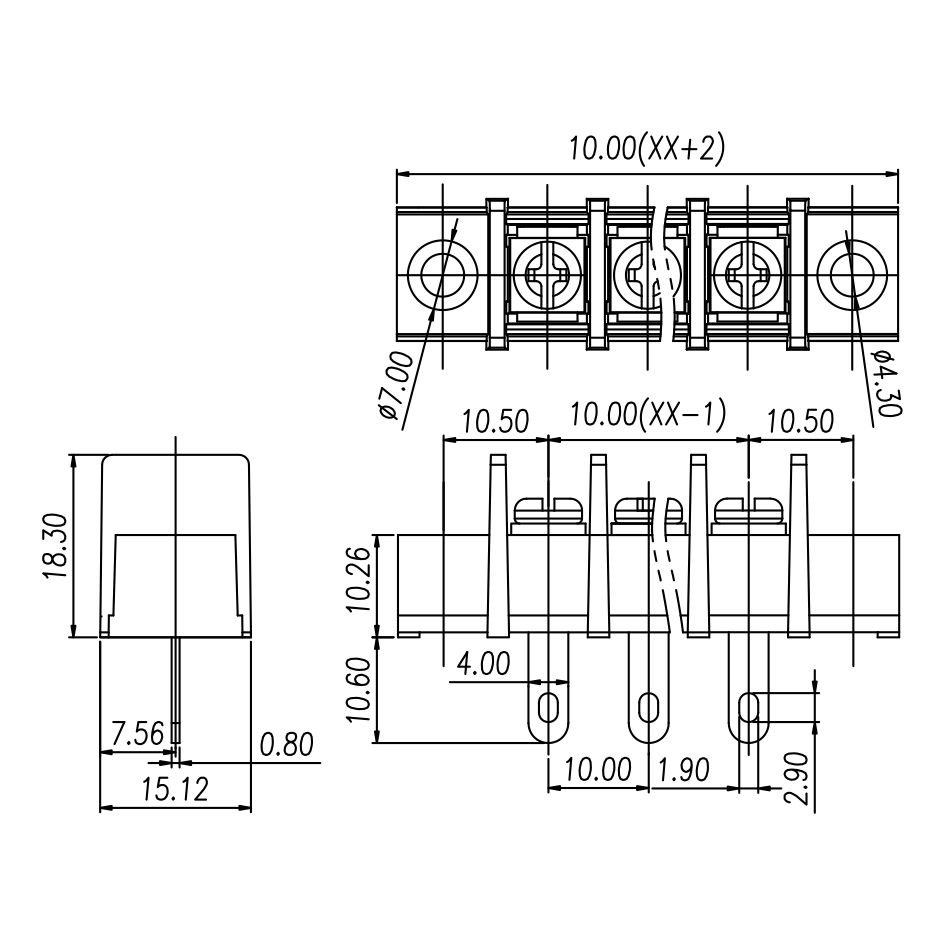

Dimensions
Dimensions

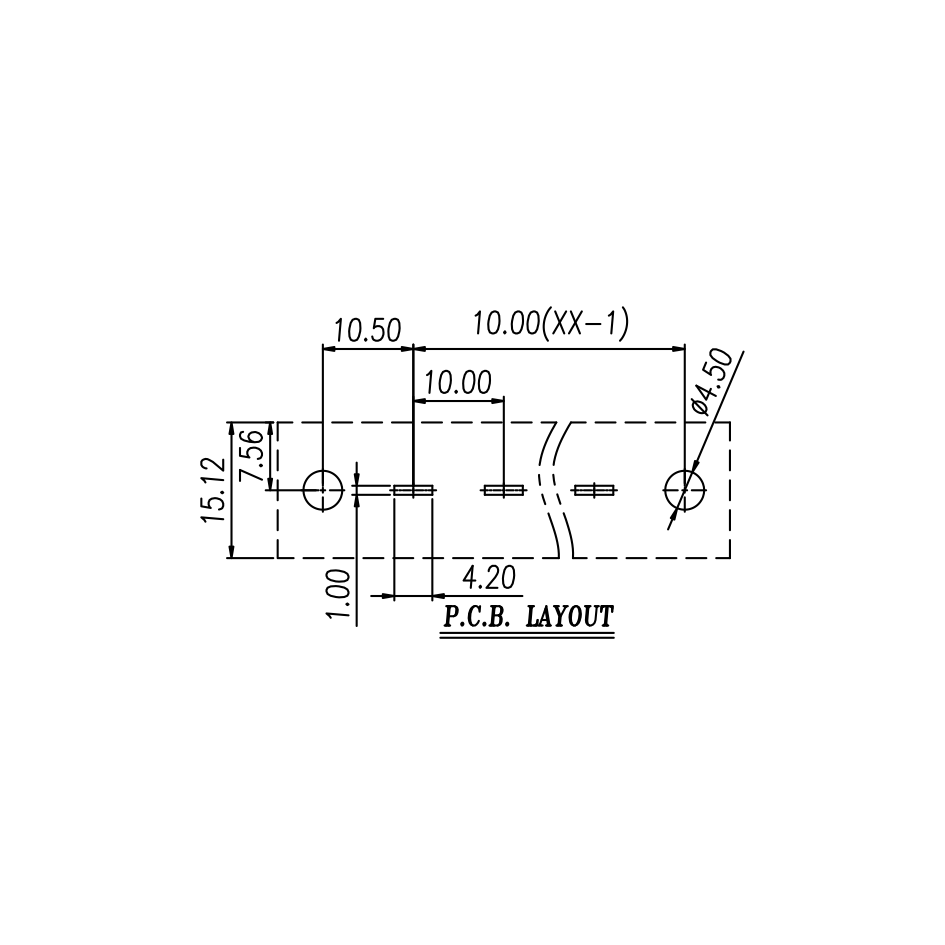

PCB hole diagram
Specifications
3D Model
