Rated current: 50A
Rated voltage: 600V
Use wire diameter: 20-8AWG
spacing: 12.0mm
Install:
Material
| Housing | PA66, UL94V-2 |
| Screws | M3.5, Steel, Zn plated |
| Pressure line column | Copper alloy, Ni plated |
Electrical
| Standard | UL | IEC |
| Rated Voltage [V] | 600 | 750 |
| Rated Current [A] | 50 | 41 |
| Wire range | 20-8AWG | 6.0mm² |
| Contact Resistance | 20mΩ | |
| Insulation Resistance | 500MΩ/DC500V | |
| Withsranding voltage | AC2200/1Min | |
| Temp.range | -40℃~+105℃ | |
| Torque | 0.8N.m(7.2Lb.in) | |

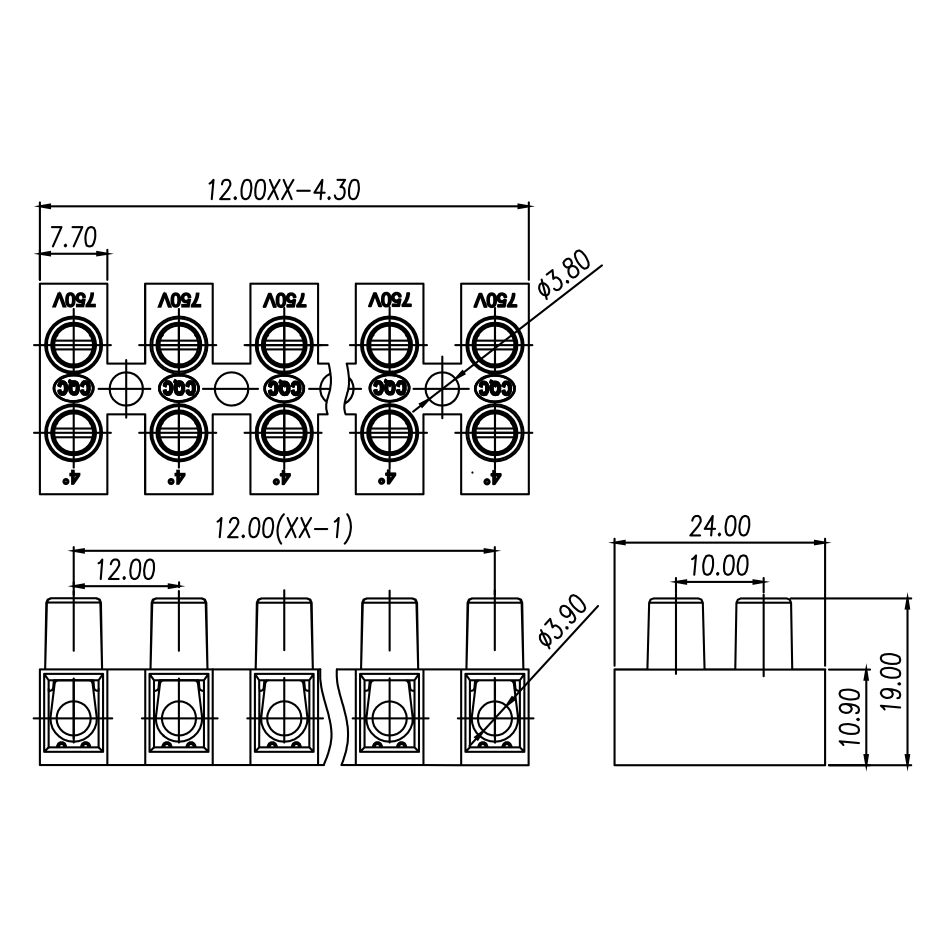

Dimensions

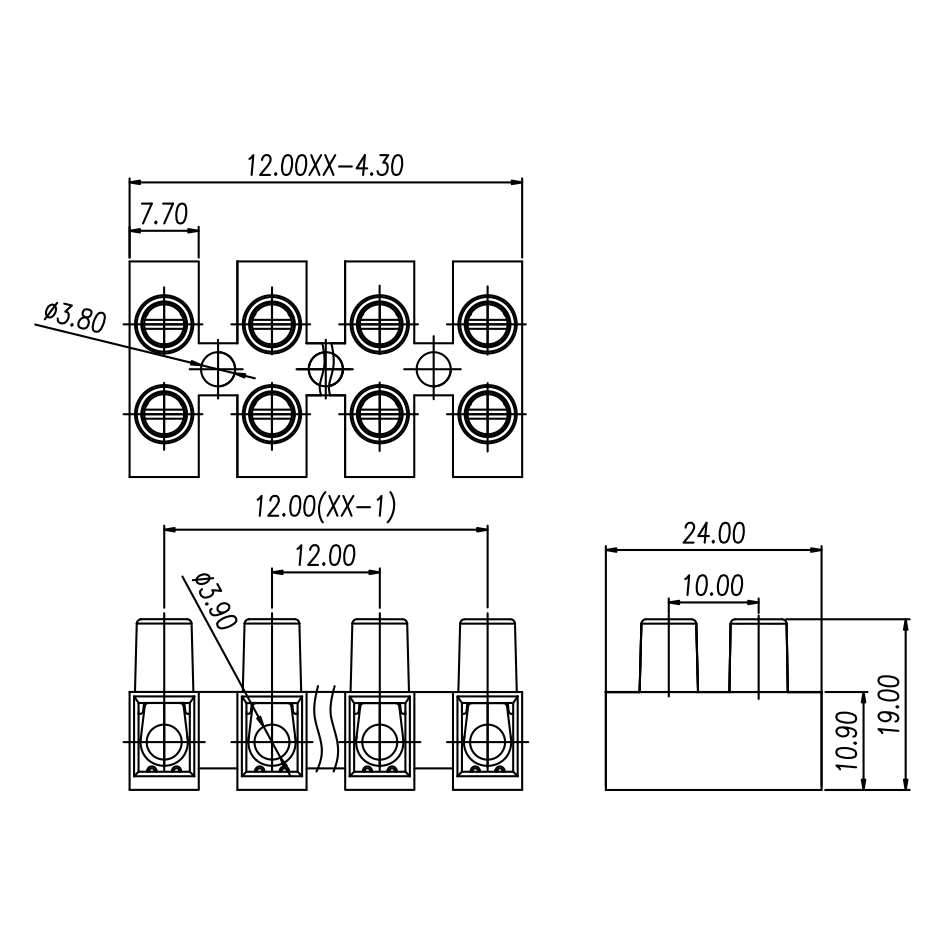

Dimensions
Specifications
3D Model
