Rated current: 30A
Rated voltage: 600V
Use wire diameter: 20-10AWG
spacing: 10.0mm
Install:
Material
| Housing | PA66, UL94V-2 |
| Screws | M3, Steel, Zn plated |
| Pressure line column | Copper alloy, Zn plated |
Electrical
| Standard | UL | IEC |
| Rated Voltage [V] | 600 | 450 |
| Rated Current [A] | 30 | 24 |
| Wire range | 20-10AWG | 2.5mm² |
| Contact Resistance | 20mΩ | |
| Insulation Resistance | 500MΩ/DC500V | |
| Withsranding voltage | AC1600/1Min | |
| Temp.range | -40℃~+105℃ | |
| Torque | 0.5N.m(4.4Lb.in) | |

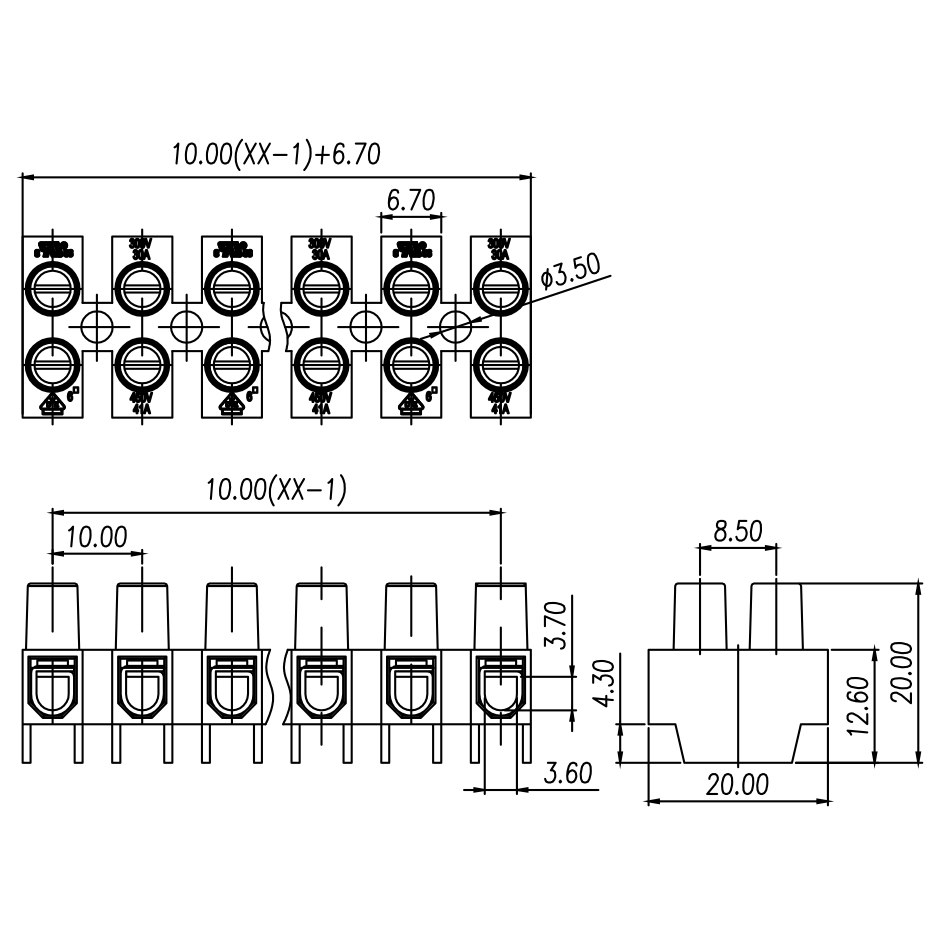

Dimensions
Dimensions
