Rated current:
Rated voltage:
Use wire diameter:
spacing: 7.5mm
Install:
适配于WJ0601, WJ0603, WJ0604系列所有产品
IEC
| Overvoltage Category | III |
| Contamination Class | 2 |
| Rated Voltage [V] | 320 |
| Rated Current [A] | 12 |
Material
| Insulation Material | PA66 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn plated |
Other Date
| Pitch/Poles [mm]/[P] | 7.5/2-3 |
| Operating temperature [℃] | -40～+105 |

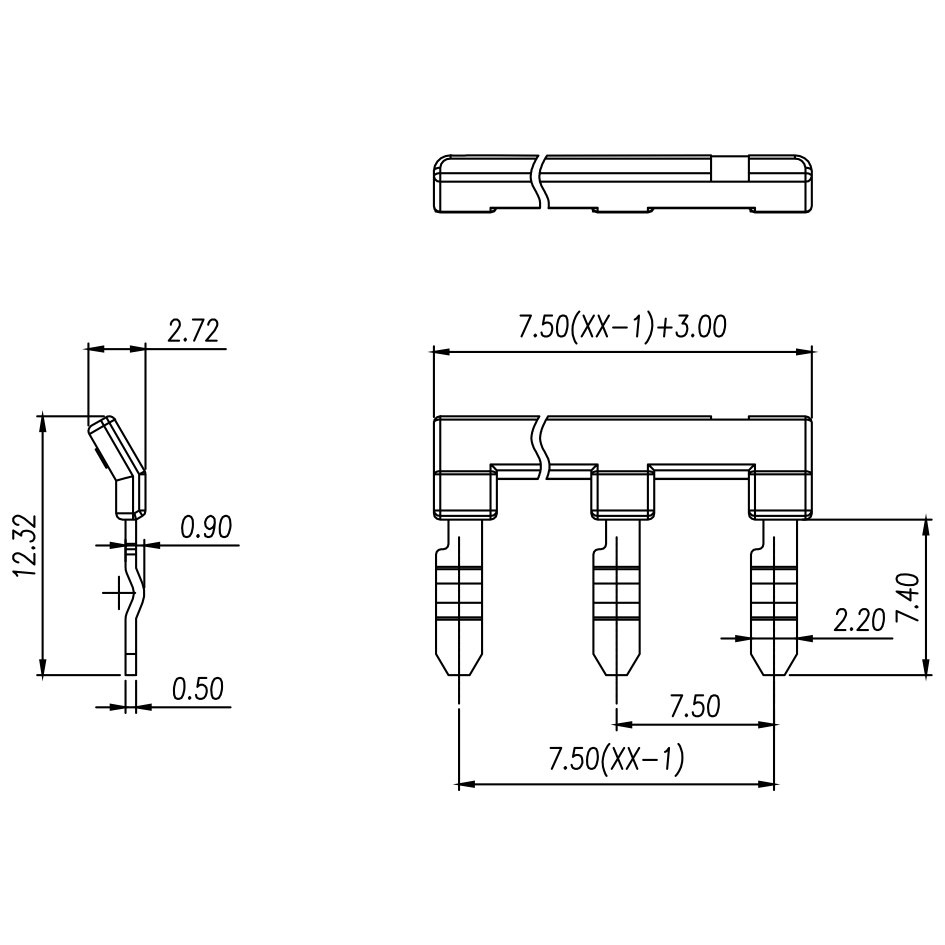

Dimensions
Dimensions
Specifications
3D Model
