Rated current: 12A
Rated voltage: 300V
Use wire diameter: 24-16AWG
spacing: 7.62mm
Install:
UL/CUL
| Use Group | B | C | D |
| Rate Voltage [V] | 300 | 150 | 300 |
| Rated Current [A] | 12 | 12 | 10 |
| Wire Range [AWG] | 24-16 | ||
| Dielectric Voltage-Withstand | 1.6KV | ||
IEC
| Overvoltage Category | III | III | II |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage [V] | 500 | 630 | 800 |
| Rated Current [A] | 17.5 | - | 17.5 |
| Impulse withstand voltage [KV] | 6 | 6 | 6 |
| Conductor cross section [mm²] | 0.2~1.5 | ||
Material
| Insulation Material | LCP |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn plated |
Other Date
| Pitch/Poles [mm]/[P] | 7.62/2-24 |
| Stripping Length [mm] | 7-8 |
| Screw/Torque(Max)[N.m] | - |
| Operating temperature [℃] | -40～+130 |
| Soldering temperature | 285℃/10S |
| Pin dimensions [mm] | 0.8*0.4 |
| PCB Hole Diameter [mm] | ∅1.2 |
Dimensions

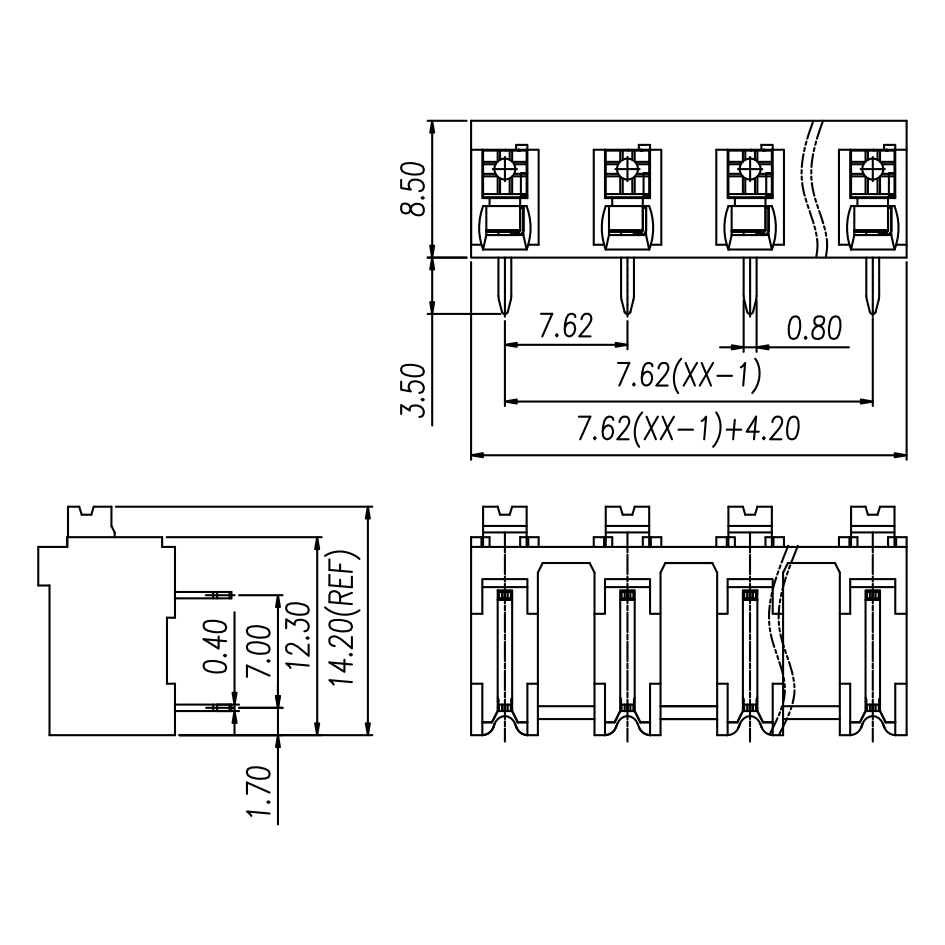

Dimensions

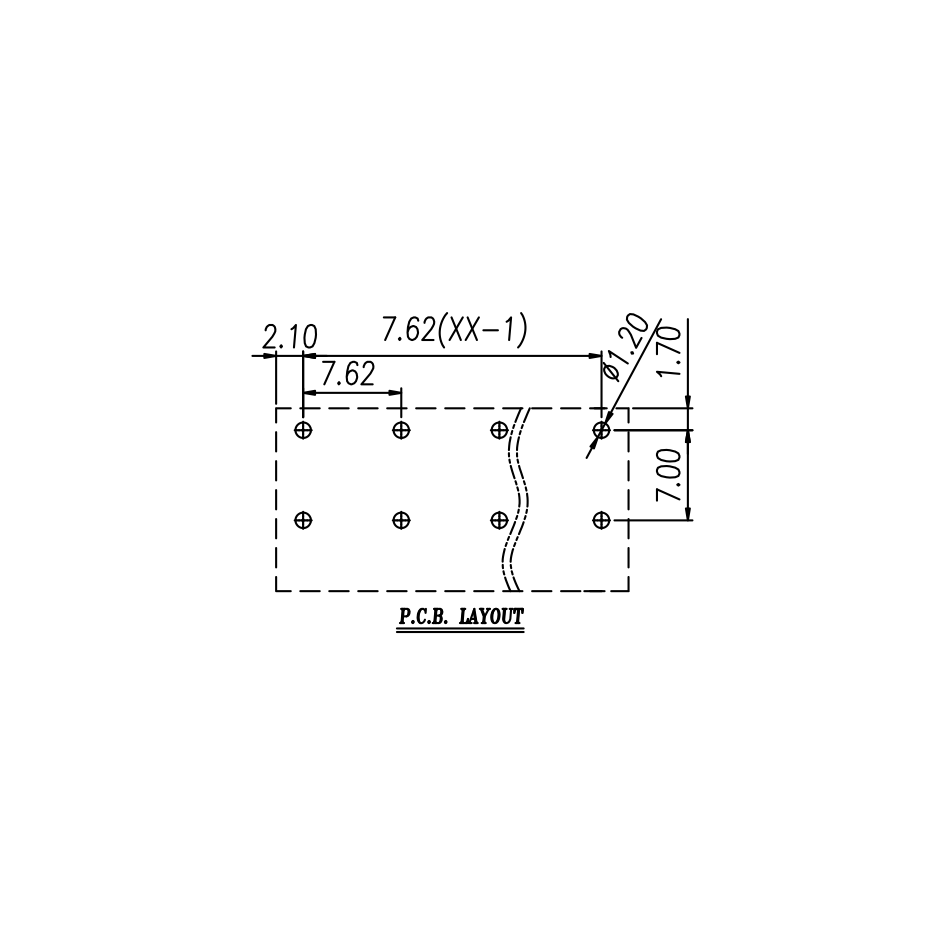

PCB hole diagram
Specifications
3D Model
