Rated current: 8A
Rated voltage:
Use wire diameter:
spacing: 3.81mm
Install:
UL/CUL
| Rated Current [A] | 8 |
Material
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn plated |
Other Date
| Pitch/Poles [mm]/[P] | 3.5/2-16 |
| Operating temperature [℃] | -40～+105 |

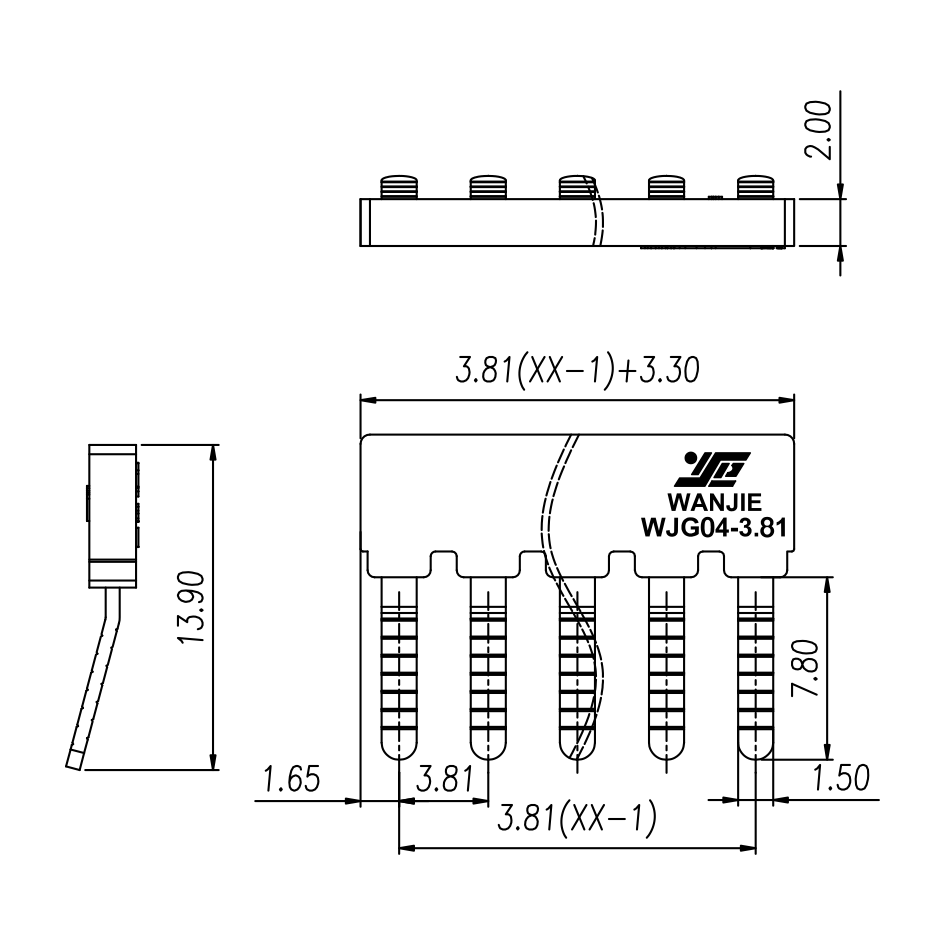

Dimensions
Dimensions
Specifications
3D Model
