Rated current: 10A
Rated voltage: 300V
Use wire diameter: 26-16AWG
spacing: 3.5mm
Install:
UL/CUL
| Use Group | B | C | D |
| Rate Voltage [V] | 300 | - | 300 |
| Rated Current [A] | 10 | - | 10 |
| Wire Range [AWG] | 26～16 | ||
| Dielectric Voltage-Withstand | 1.6KV | ||
IEC
| Overvoltage Category | III | III | II |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage [V] | 160 | 200 | 400 |
| Rated Current [A] | 17.5 | 17.5 | 17.5 |
| Impulse withstand voltage [KV] | 2.5 | 2.5 | 2.5 |
| Conductor cross section [mm²] | 0.2~1.5 | ||
Material
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn plated |
Other Date
| Pitch/Poles [mm]/[P] | 3.5/2～24 |
| Stripping Length [mm] | 5 |
| Screw/Torque(Max)[N.m] | M2/0.2 |
| Operating temperature [℃] | -40～+105 |
| Soldering temperature | 260℃/5S |
| 引针尺寸 Pin dimensions [mm] | ∅0.85 |
| PCB Hole Diameter [mm] | Ø1.1 |
Dimensions

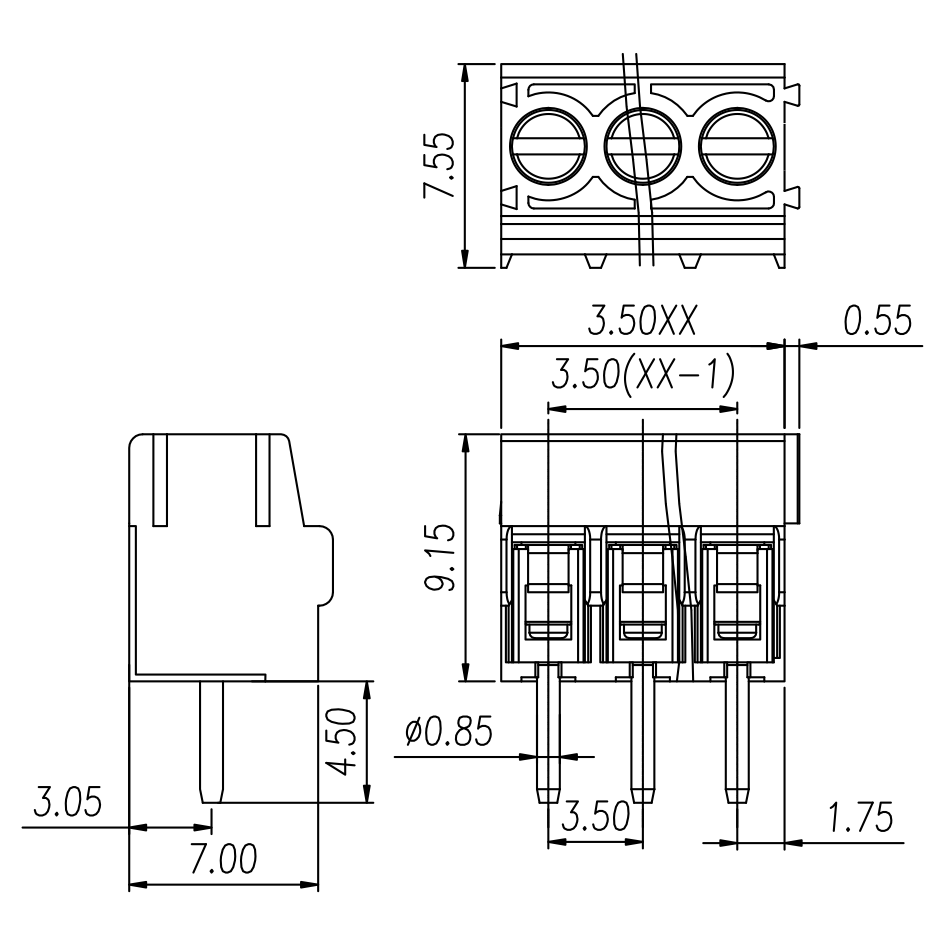

Dimensions

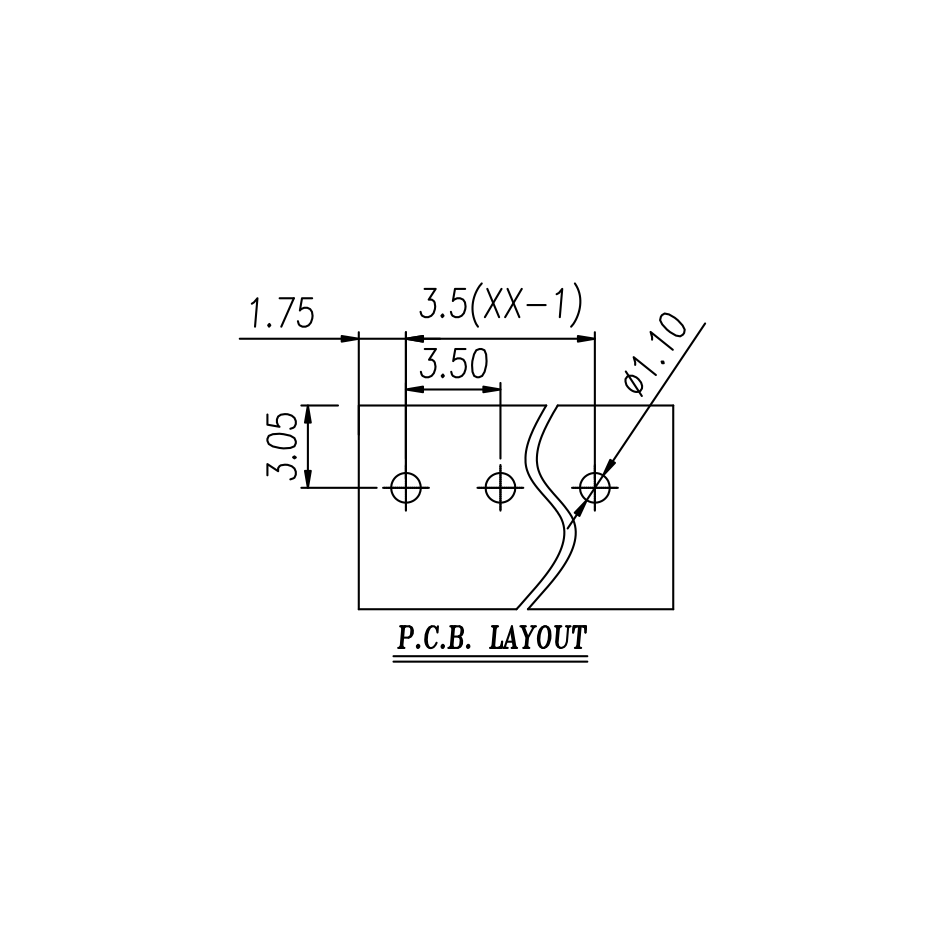

PCB hole diagram
Specifications
3D Model
WJ303-3.5-XXP-1Y-00A.pdf
