Rated current: 15A
Rated voltage: 300V
Use wire diameter: 28-14AWG
spacing:
Install:
UL（1059）
| Use Group | B | C | D |
| Rate Voltage [V] | 300 | 300 | 600 |
| Rated Current [A] | 15 | 15 | 5 |
| Wire Range [AWG] | 28～14 | ||
IEC
| Rated Voltage [V] | 500 |
| Rated Current [A] | 24 |
| Soild [mm²] | 0.2-2.5 |
| Flexible [mm²] | 0.2-2.5 |
| Overvoltage Category | III |
| Contamination Class | 3 |
| Impulse withstand voltage [KV] | 6 |
Material
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn plated |
Other Date
| Stripping Length [mm] | 8-9 |

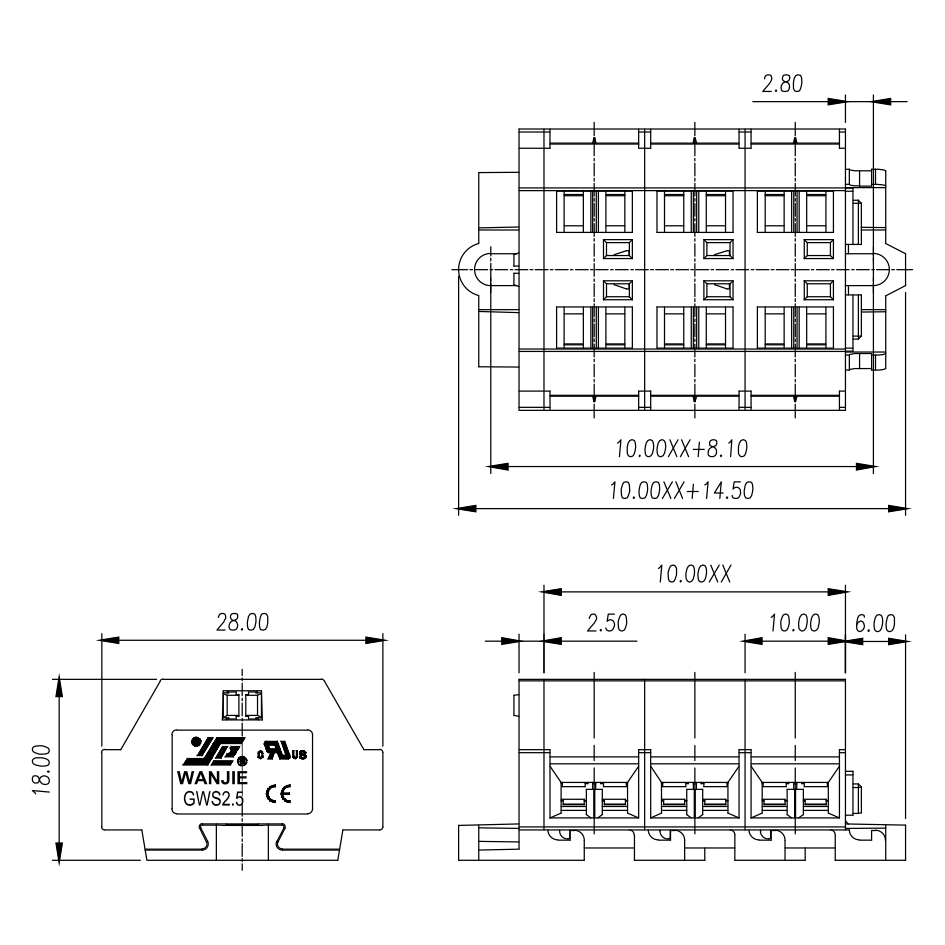

Dimensions
Dimensions
Specifications
3D Model
