Rated current:
Rated voltage:
Use wire diameter: 24-8AWG
spacing:
Install:
UL（1059）
| Wire Range [AWG] | 24-8 | ||
IEC（60947-7-2）
| Soild [mm²] | 0.2-10.0 |
| Flexible [mm²] | 0.2-6.0 |
| Flexible with ferrule [mm²] | 0.2-6.0 |
| Overvoltage Category | III |
| Contamination Class | 3 |
Material
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Ni plated |
Other Date
| Length/Height/Thickness [mm] | 42.9/45.8/8.2 |
| Stripping Length [mm] | 10 |
| Screw/Torque [N.m] | M4/1.5-1.8 |

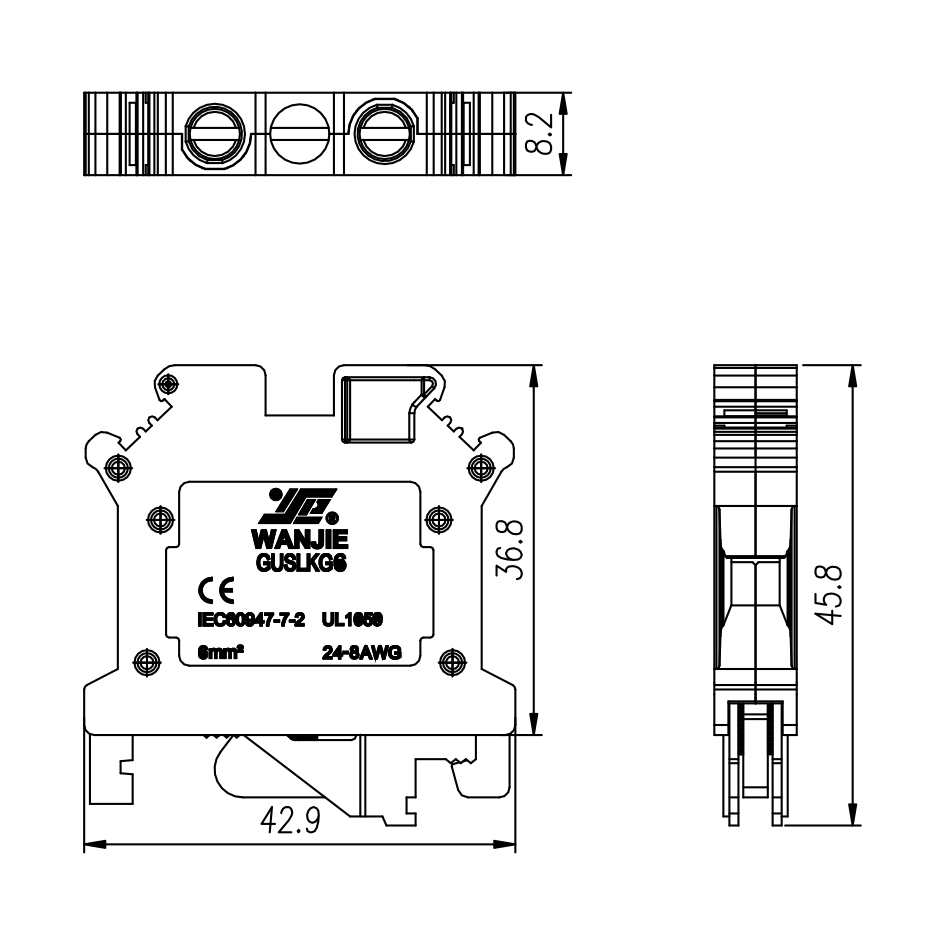

Dimensions
Dimensions
