Rated current: 20A
Rated voltage: 300V
Use wire diameter: 24-12AWG
spacing:
Install:
UL（1059）
| Use Group | B | C | D |
| Rate Voltage [V] | 300 | 300 | 300 |
| Rated Current [A] | 20 | 20 | 5 |
| Wire Range [AWG] | 24-12 | ||
IEC（60947-7-1）
| Rated Voltage [V] | 500 |
| Rated Current [A] | 24 |
| Soild [mm²] | 0.2-4.0 |
| Flexible [mm²] | 0.2-2.5 |
| Flexible with ferrule [mm²] | 0.25-1.5 |
| Overvoltage Category | III |
| Contamination Class | 3 |
| Impulse withstand voltage [KV] | 8 |
Material
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Ni plated |
Other Date
| Length/Height/Thickness [mm] | 56.1/60.9/5.2 |
| Stripping Length [mm] | 8-9 |
| Screw/Torque [N.m] | M3/0.6-0.8 |

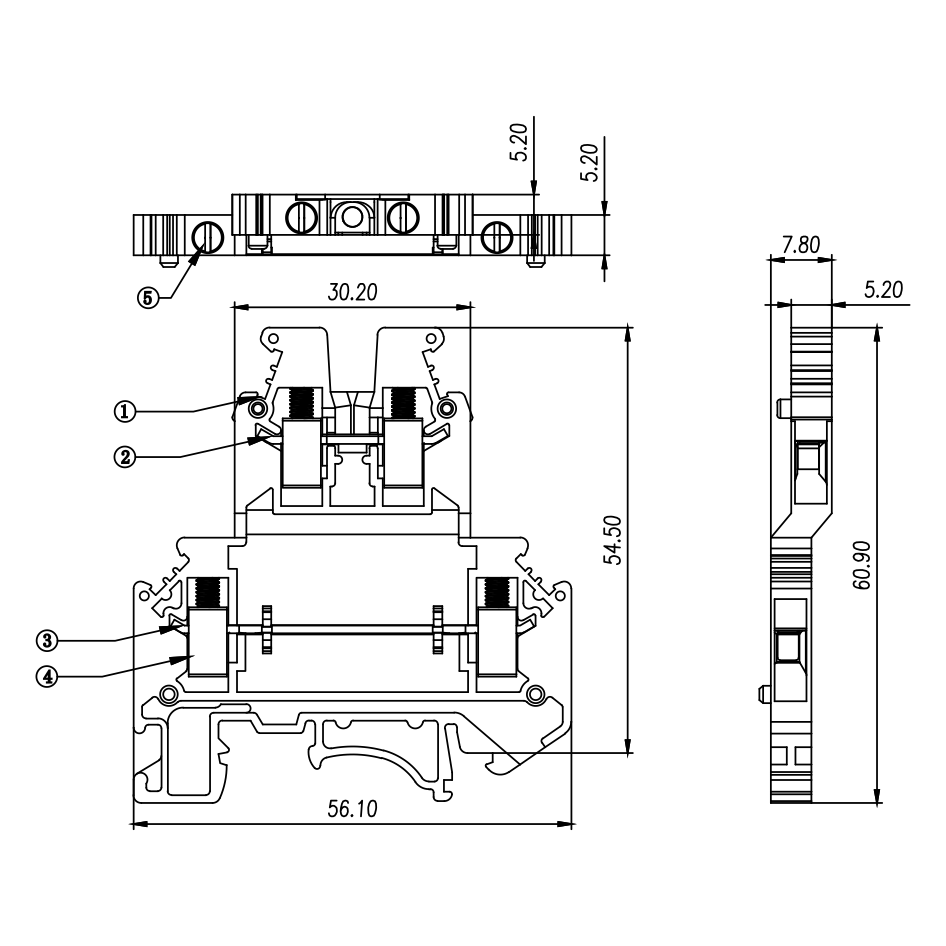

Dimensions
Dimensions
