Rated current: 65A
Rated voltage: 600V
Use wire diameter: 20-6AWG
spacing:
Install:
UL（1059）
| Use Group | B | C | D |
| Rate Voltage [V] | 600 | 600 | 600 |
| Rated Current [A] | 65 | 65 | 5 |
| Wire Range [AWG] | 20-6 | ||
IEC（60947-7-1）
| Rated Voltage [V] | 800 |
| Rated Current [A] | 57 |
| Soild [mm²] | 0.5-16.0 |
| Flexible [mm²] | 0.5-10.0 |
| Flexible with ferrule [mm²] | 0.5-6.0 |
| Overvoltage Category | III |
| Contamination Class | 3 |
| Impulse withstand voltage [KV] | 8 |
Material
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Ni plated |
Other Date
| Length/Height/Thickness [mm] | 42.5/45.8/10.2 |
| Stripping Length [mm] | 10-11 |
| Screw/Torque [N.m] | M4/1.5-1.8 |

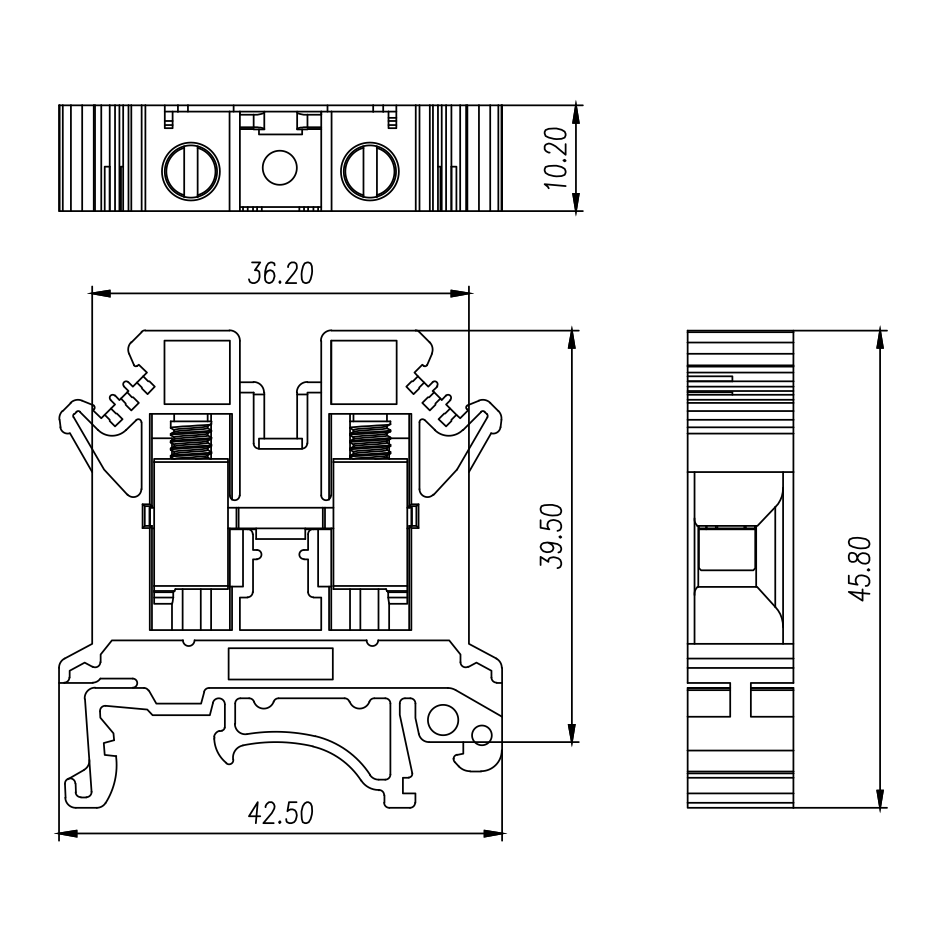

Dimensions
Dimensions

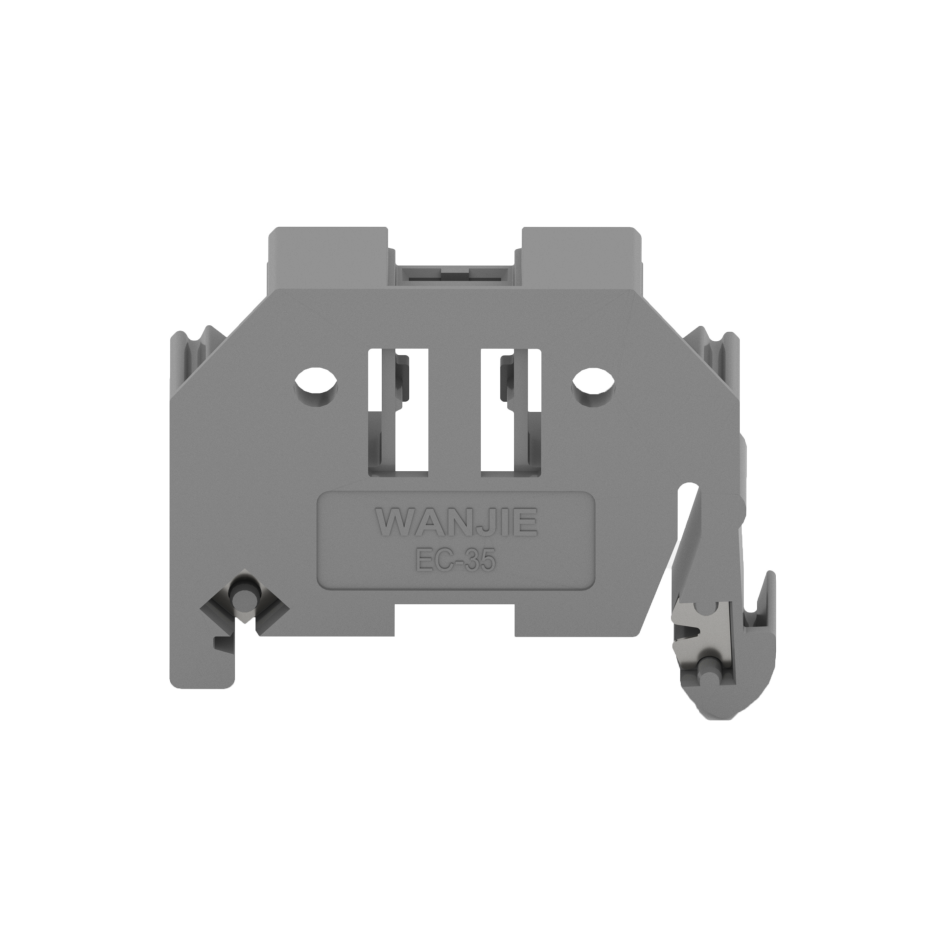

Adapted Products
