Rated current:
Rated voltage:
Use wire diameter: 26-12AWG
spacing:
Install:
UL（1059）
| Wire Range [AWG] | 26～12 | ||
IEC（60947-7-2）
| Soild [mm²] | 0.2-4.0 |
| Flexible [mm²] | 0.2-2.5 |
| Flexible with ferrule [mm²] | 0.25-2.5 |
| Overvoltage Category | III |
| Contamination Class | 3 |
| Impulse withstand voltage [KV] | 8 |
Material
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn plated |
Other Date
| Length/Height/Thickness [mm] | 44.0/40.0/5.2 |
| Stripping Length [mm] | 8-9 |
| Screw/Torque [N.m] | M2.5/0.4-0.5 |

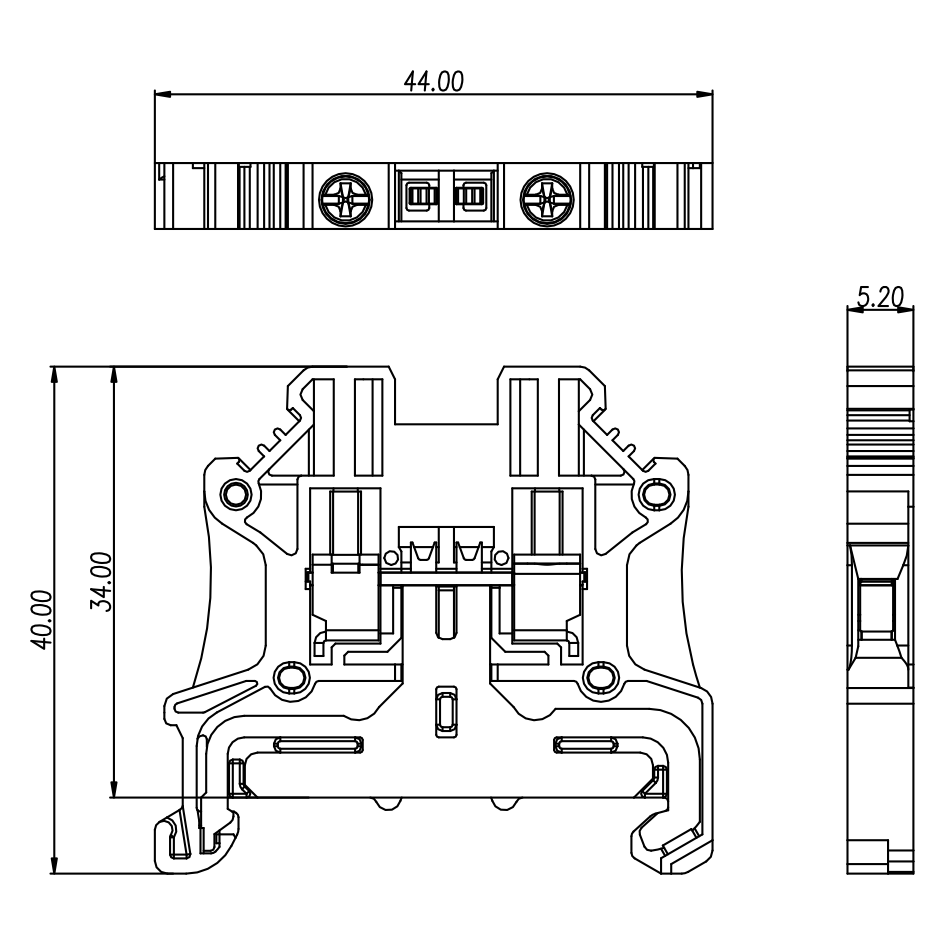

Dimensions
Dimensions
