Rated current: 50A
Rated voltage: 600V
Use wire diameter: 24-8AWG
spacing:
Install:
UL（1059）
| Use Group | B | C | D |
| Rate Voltage [V] | 600 | 600 | 600 |
| Rated Current [A] | 50 | 50 | 5 |
| Wire Range [AWG] | 24～8 | ||
IEC（60947-7-1）
| Rated Voltage [V] | 1000 |
| Rated Current [A] | 41 |
| Soild [mm²] | 0.2-10.0 |
| Flexible [mm²] | 0.2-6.0 |
| Flexible with ferrule [mm²] | 0.25-6.0 |
| Overvoltage Category | III |
| Contamination Class | 3 |
| Impulse withstand voltage [KV] | 8 |
Material
| Insulation Material | PA66 |
| Flame relardant rating | UL94V-0 |
| Conductor Material | Copper alloy |
| Plating of conductor surface | Sn plated |
Other Date
| Length/Height/Thickness [mm] | 90.5/42.6/8.2 |
| Stripping Length [mm] | 12 |

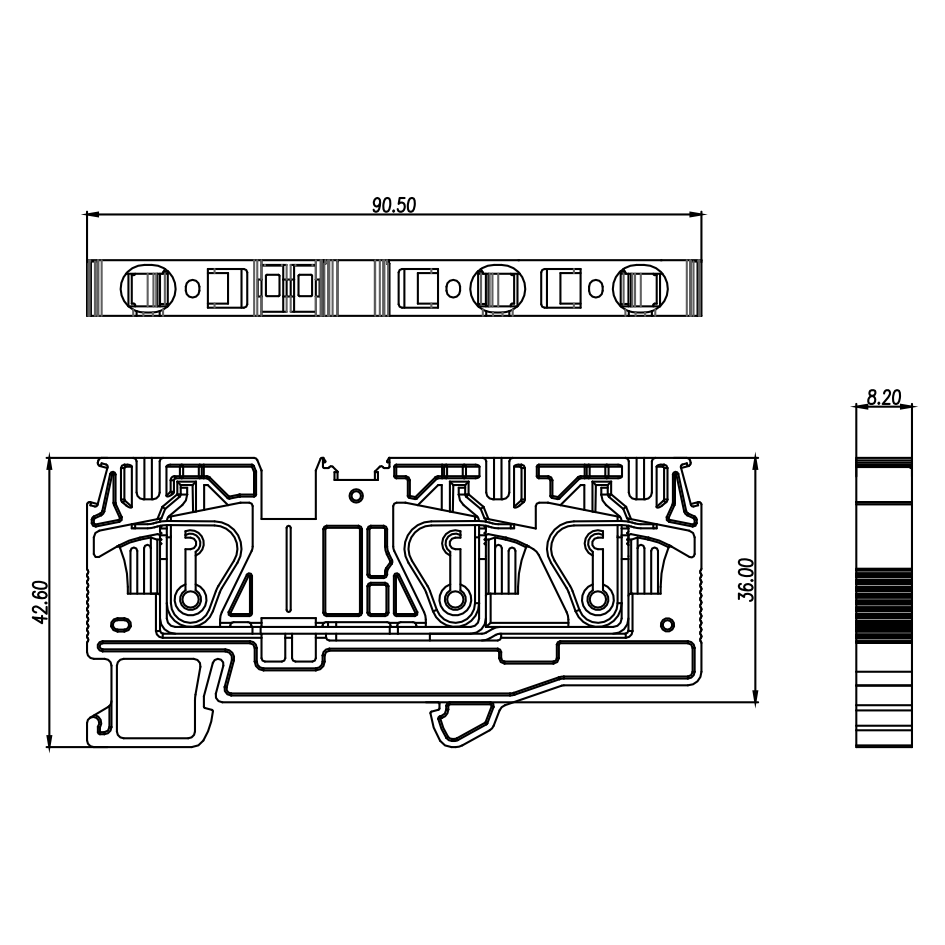

Dimensions
Dimensions
