M12 Female Molded Cables,X Coding, Straight

Connector Series：M12
Gender：Female
Coding：X
Locking Type：Fix Screw
Mounting Type：Straight

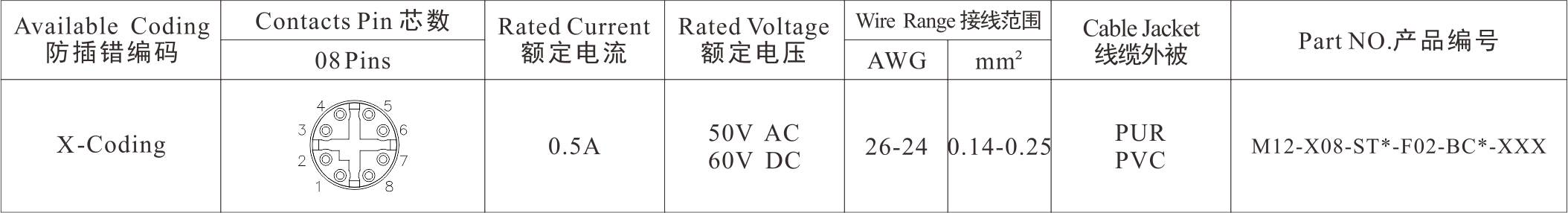

Part No：M12-X**-ST0-F02-BC*-XXX
              X:X Coding
              **:08(Pin)
              ST0:0=UnShielded，2=Full Shield
              BC*:BCC=Cable Jacket PVC(For Molded Cable)
              BC*:BCR=Cable Jacket PUR(For Molded Cable)
              XXX:050=0.5M,100=1M,10M=10M...(Length)
Technical Data
Standard
IEC61076-2-109
Ambient Temperatur
-25℃-+80℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤5mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
PA
Connector Contacts
Copper Alloy With Gold Plated 铜镀金
Connector Nut/Screw
Copper Alloy With Nickel Plated 铜镀镍
Seal/O-Ring
FKM 氟橡胶
Shielding
Unshielded 屏蔽 / Shielded 屏蔽
Connector Overmold
TPU

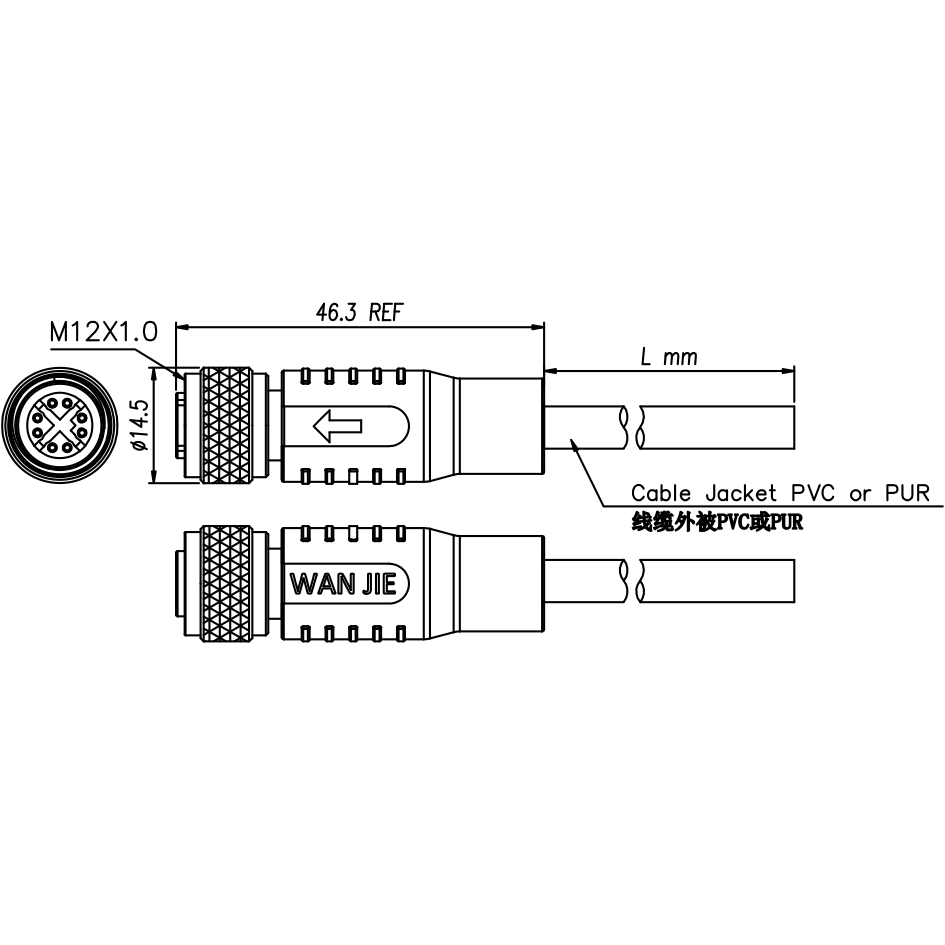

Dimensions
PDF Page



3D Model
