M12 Female Molded Cables, Angled, UnShielded

Connector Series：M12
Gender：Female
Coding：A,B,C,D
Locking Type：Fix Screw
Mounting Type：Angled

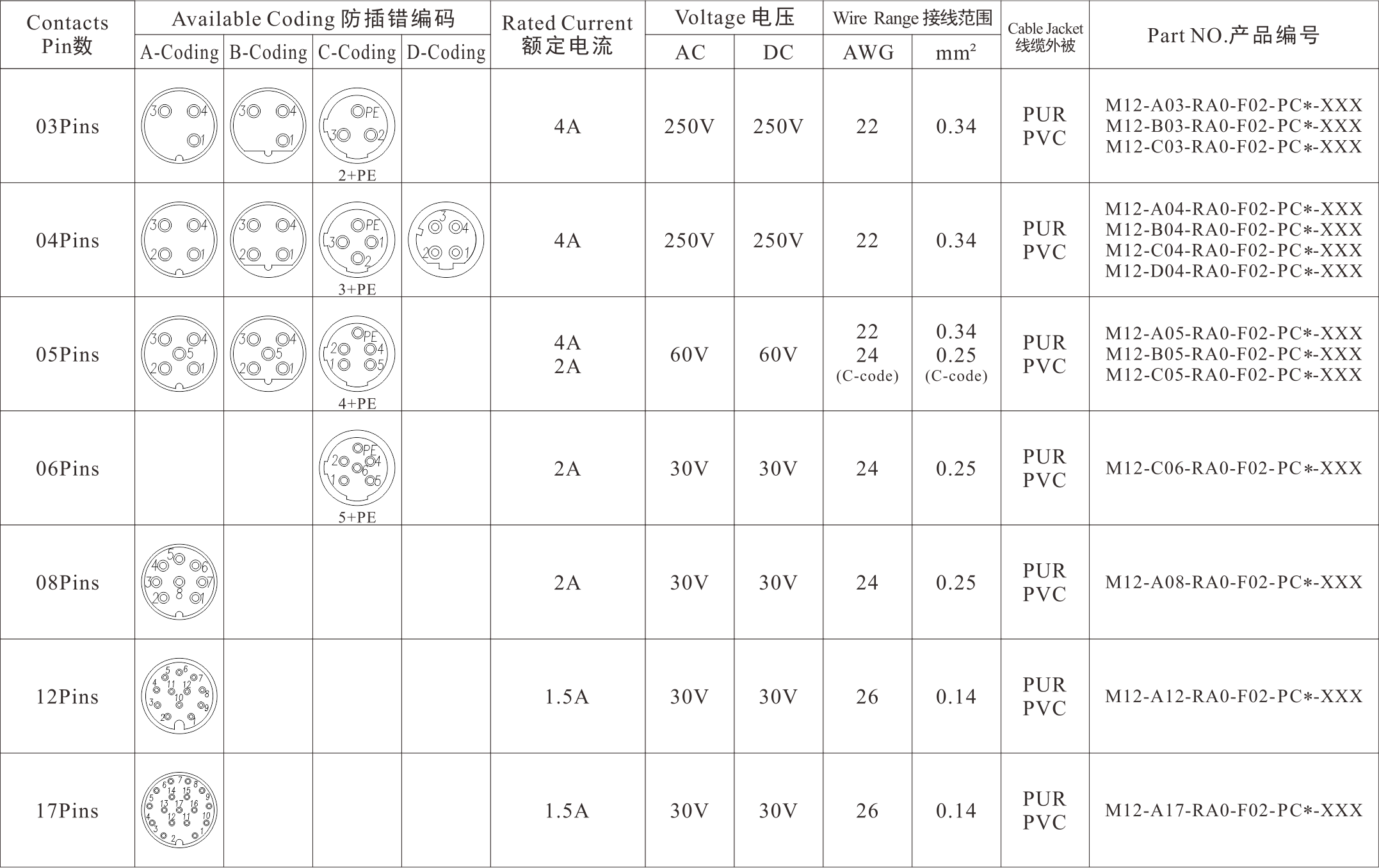

Part No：M12-X**-RA0-F02-PC*-XXX
             X:A,B,C,D Coding
             **:03,04,05...(Pin)
              PC*:PCC=Cable Jacket PVC(For Molded Cable)
              PC*:PCR=Cable Jacket PUR(For Molded Cable)
              XXX:050=0.5M,100=1M,10M=10M...(Length)
Technical Data
Standard
IEC61076-2-101
Ambient Temperatur
-25℃-+80℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤5mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
PA
Connector Contacts
Copper Alloy With Gold Plated 铜镀金
Connector Nut/Screw
Plastic PA66+GF 塑料
Seal/O-Ring
FKM 氟橡胶
Shielding
Unshielded 非屏蔽
Connector Overmold
TPU
Dimensions
PDF Page



3D Model
