M12 Male Molded Cables, Straight, UnShielded

Connector Series：M12
Gender：Male 公
Coding：A,B,C,D
Locking Type：Fix Screw
Mounting Type：Straight

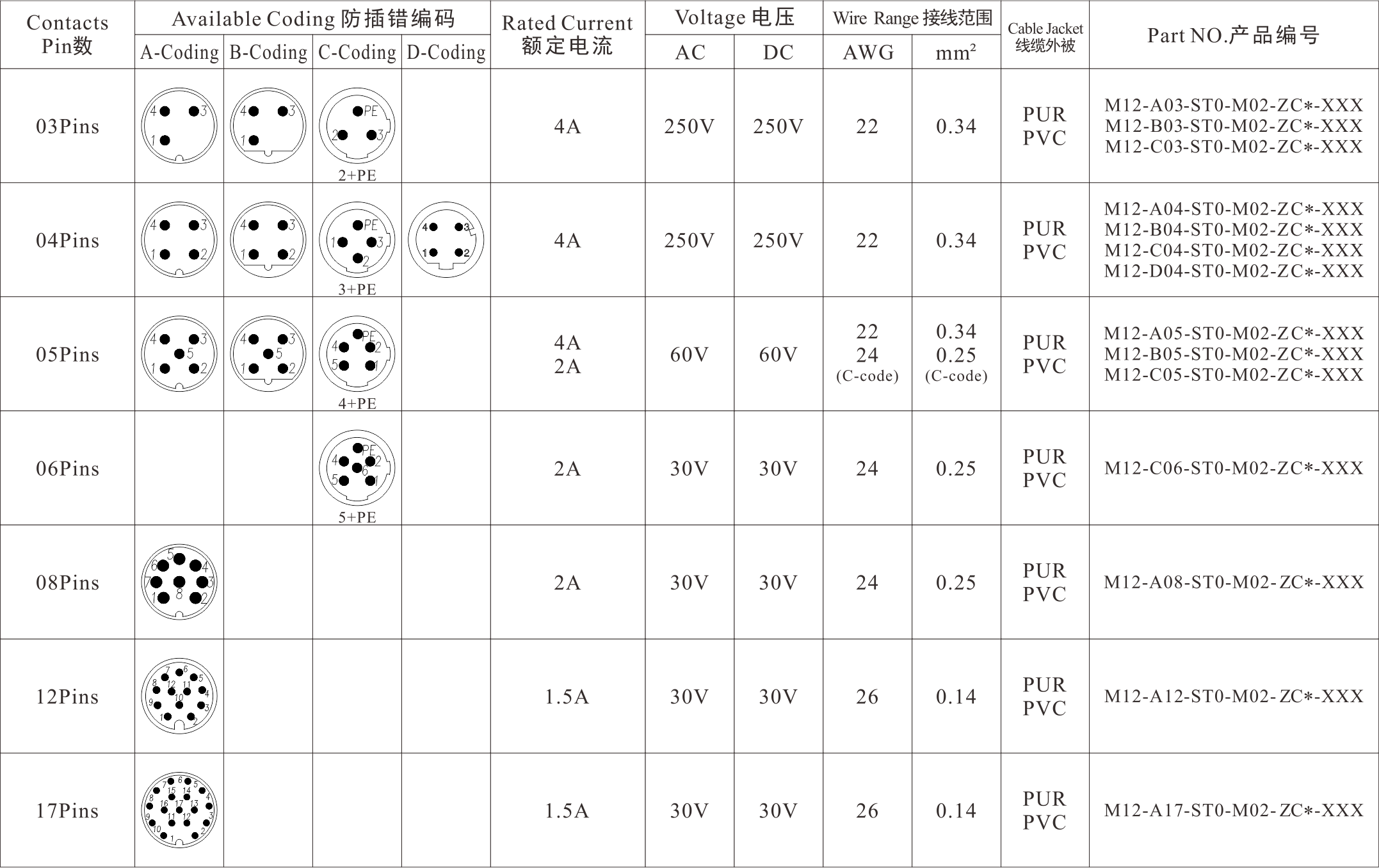

Part No：M12-X**-ST0-M02-ZC*-XXX
              X:A,B,C,D Coding
              **:03,04,05...（Pin）
               ZC*:ZCC=Cable Jacket PVC(For Molded Cable)
               ZC*:ZCR=Cable Jacket PUR(For Molded Cable)
               XXX:050=0.5M,100=1M,10M=10M...(Length)
Technical Data
Standard
IEC61076-2-101
Ambient Temperatur
-25℃~+80℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤5mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
PA
Connector Contacts
Copper Alloy With Gold Plated 铜镀金
Connector Nut/Screw
Zn Alloy With Nickel Plated 锌合金镀镍
Shielding
Unshielded 非屏蔽
Connector Overmold
TPU

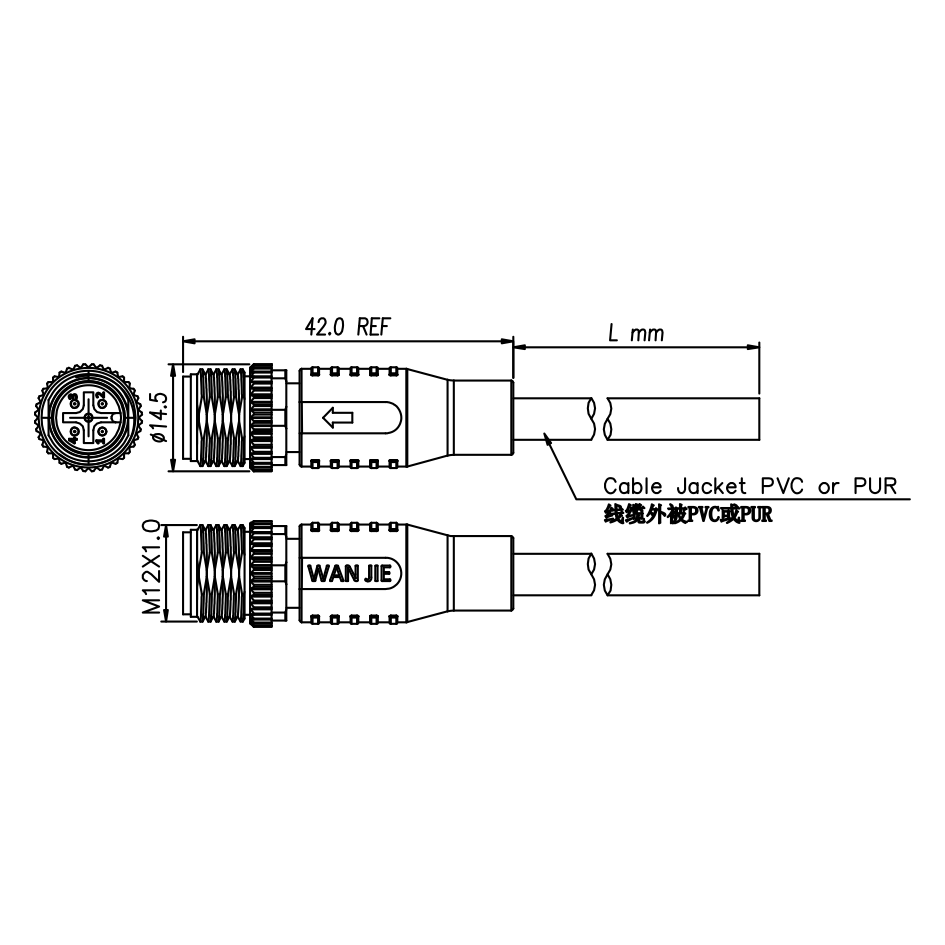

Dimensions
PDF Page



3D Model
