M8 Female Panel Mount, PCB Type, Front Fastened

Connector Series：M8

Gender：Female

Coding：A, B

Locking Type： Fix Screw

Mounting Type: Front Fastened

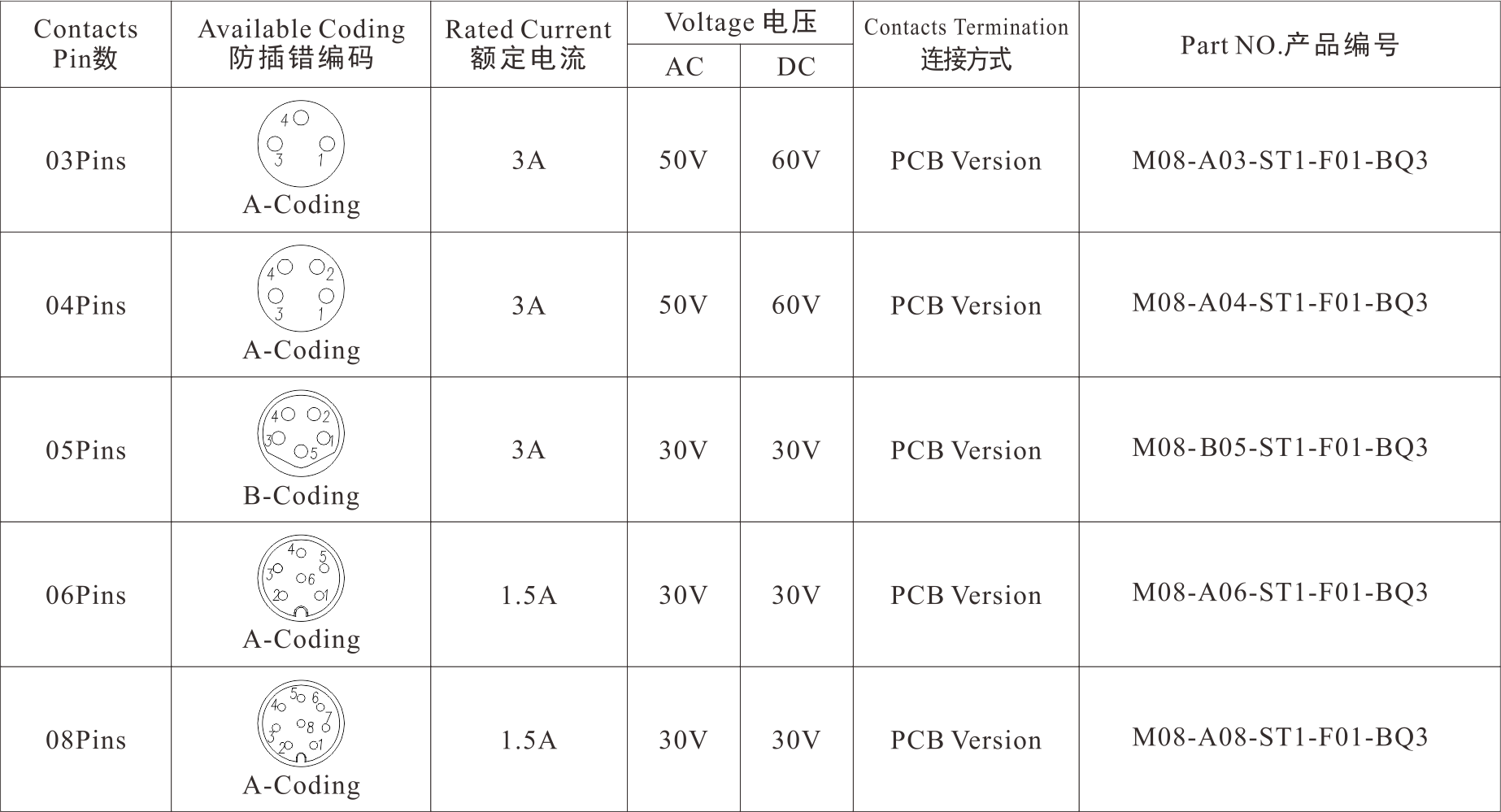

Part No：M08-X**-ST1-F01-BQ3

              X:A, B Coding

              **：03, 04, 05, 06, 08 (Pin)

              BQ3:3=M10X0.75(OD3)

Technical Data
Standard
IEC61076-2-104
Ambient Temperatur
-25℃-+85℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤5mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
PA
Connector Contacts
Copper Alloy With Gold Plated 铜镀金
Connector Nut/Screw
Copper Alloy With Nickel Plated 铜镀镍
Seal/O-Ring
FKM 氟橡胶
Shielding
Shielded 屏蔽
Dimensions
PDF Page



3D Model
